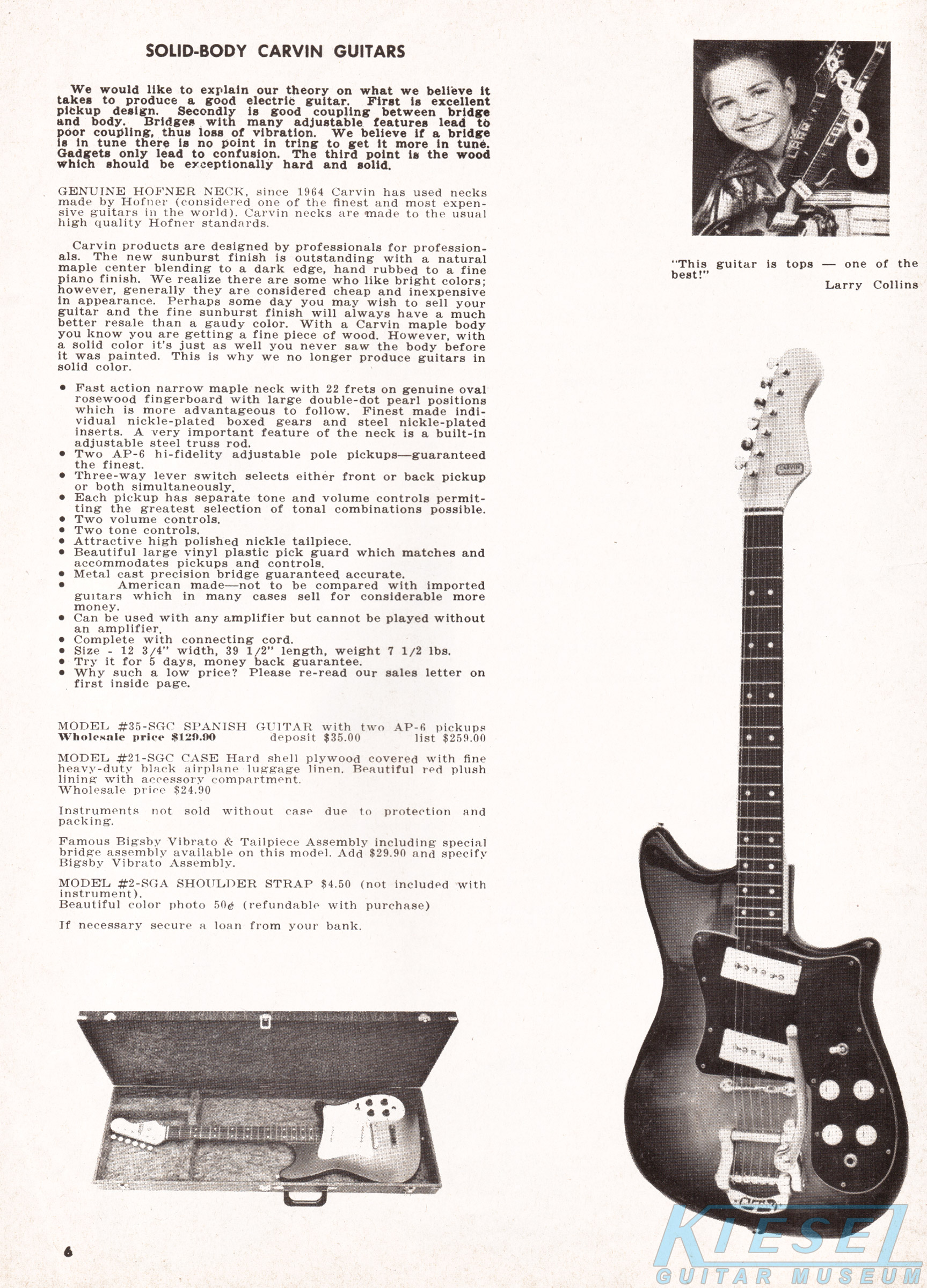

First up is the Model #35-SGC Spanish guitar. Even in the late 60's, Carvin referred to electric 6 string instruments as "Spanish" guitars, although this was actually a standard regular 6-string electric. This model was constructed from a maple Hofner neck with rosewood fingerboard and a maple body with a sunburst finish. Electronics consisted of a pair of Carvin AP-6 pickups, with dual volume and tone controls and three-way selector switch. The manufacturer of the tuners, bridge and tailpiece was not specified, although a Bigsby vibrato tailpiece was available as an option. Base price on the #35-SGC was $129.90 with a standard bridge/tailpiece assembly, and the Bigsby was an additional $29.90. The #21-SGC hardshell case was an additional $24.90.

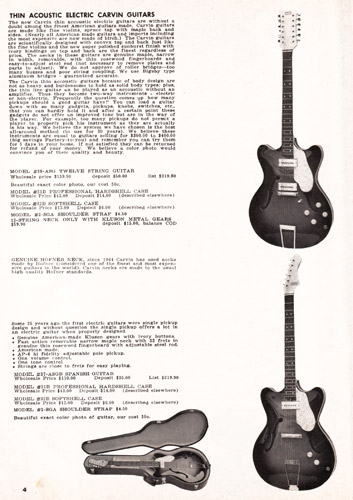

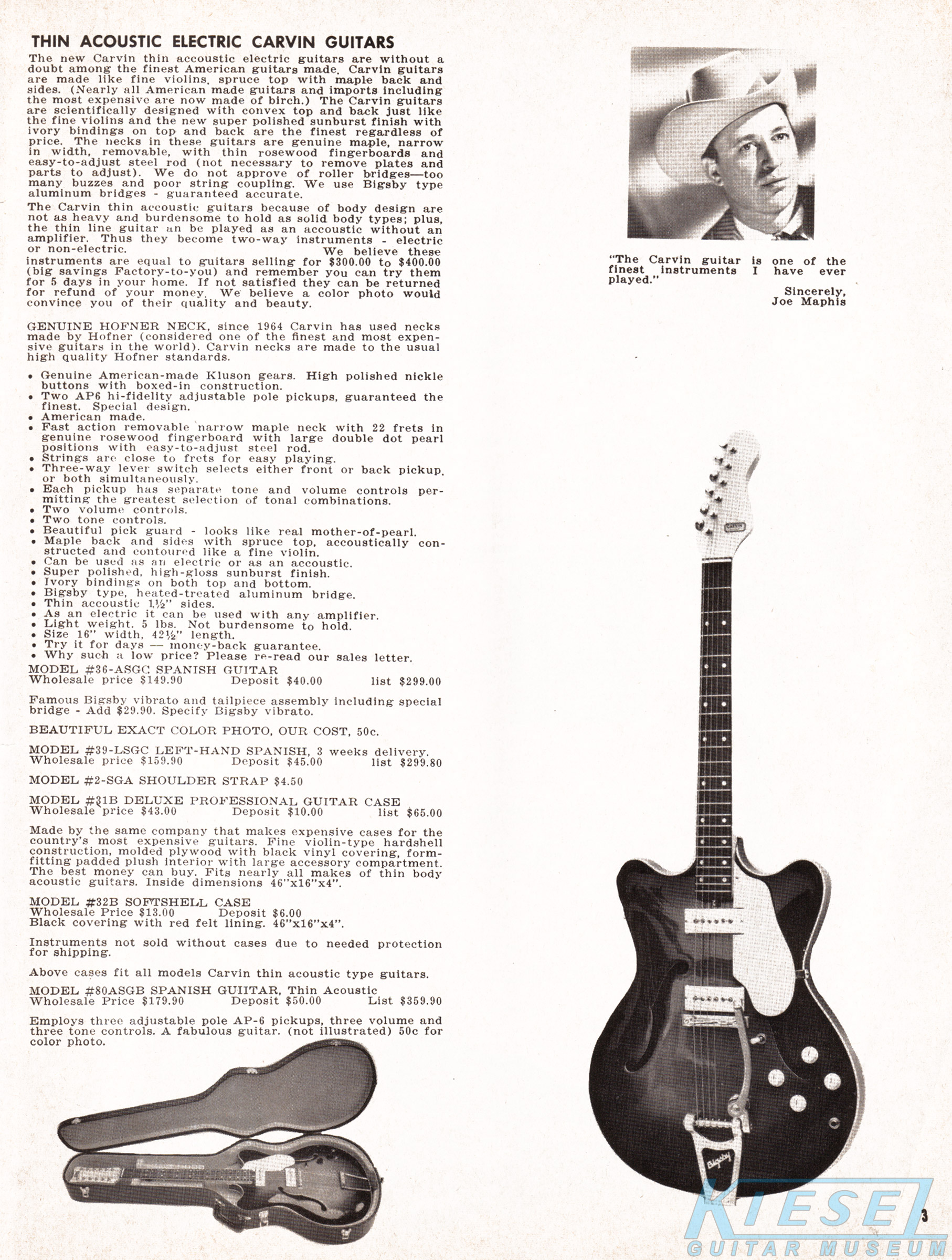

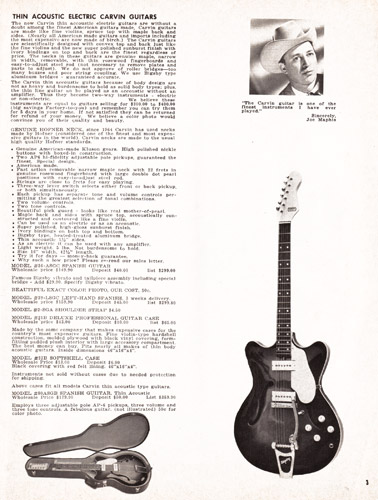

Next is the semi-hollow Model #36-ASGC guitar. This guitar had the same electronics and neck of the #35-SGC, with a body constructed of maple with a spruce top. The #36-ASGC sold for $149.90 with a conventional Bigsby tailpiece, and the optional Bigsby vibrato was an additional $29.90. It was also available in a left-handed model, #39-LSGC, for $159.90. The #31B deluxe hardshell case was $43.00.

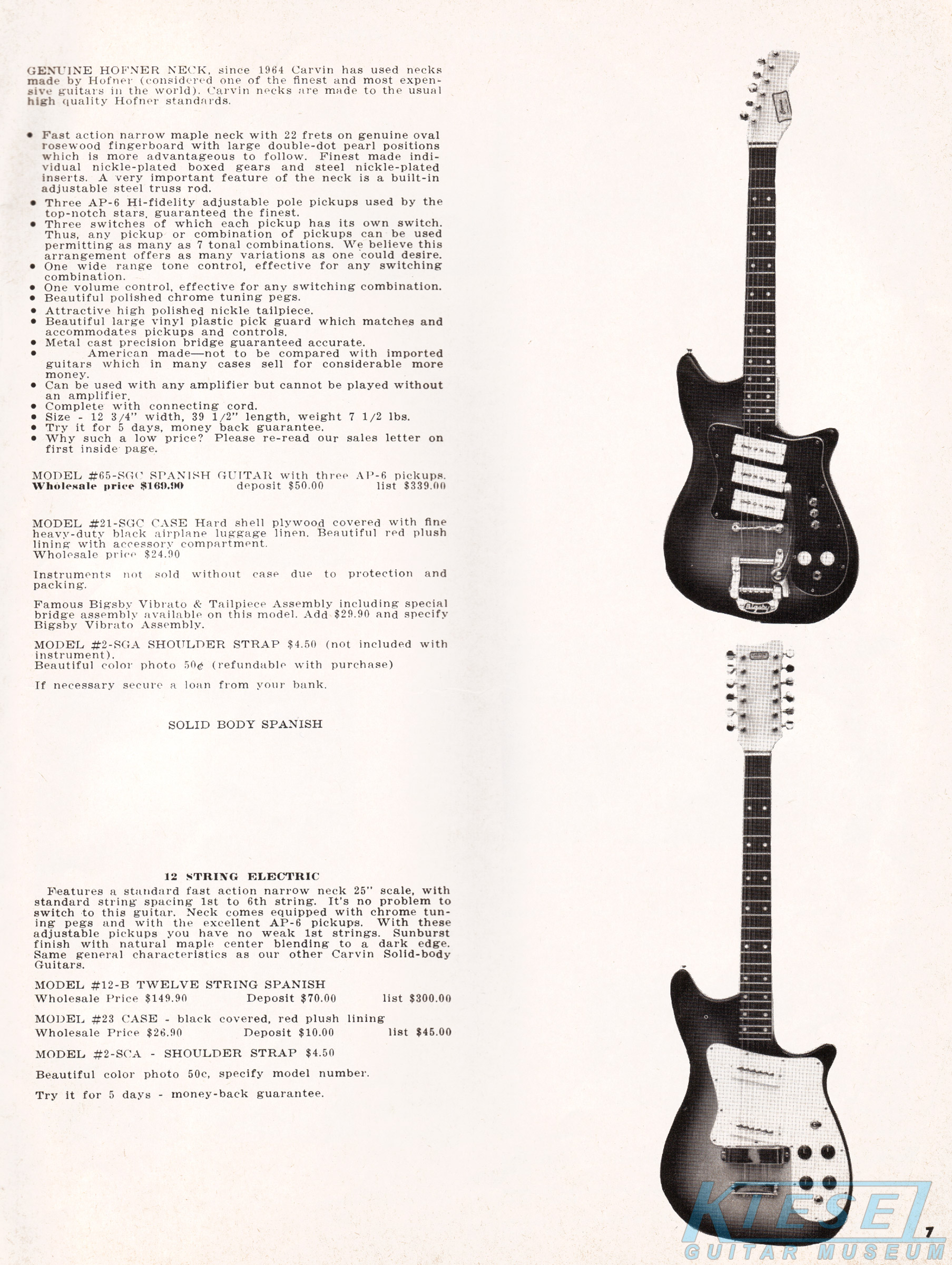

The Model #65-SGC Spanish guitar was similar to the #35-SGC, but it had three AP-6 pickups, versus 2 as on the #35. Controls consisted of a master volume and tone, and an on/off switch for each pickup, which allowed 7 different combinations of pickups to be in use at once. Like other Carvin guitars of the era, the neck was made by Höfner with a rosewood fingerboard, and the body was maple with sunburst finish. The #65-SGC sold for $169.90, and the Bigsby vibrato was an additional $29.90. The #21-SGC case sold for $24.90.
The Model #12-B was a twelve string equivalent of the Model #35-SGC. Body construction, neck and electronics were identical to its 6-string counterpart (although the headstock shape was obviously different). This model sold for $149.90, plus $26.90 for the model #23 hardshell case.
There was also a 12-string version of the #36-ASGC semi-hollow guitar called the Model #38-ASG. Construction and electronics were the same as the 6-string, with the exception that a Bigsby vibrato was not offered. It sold for $159.90, plus $43.00 for the #31B hardshell case.
The Model #37-ASGB guitar was a basic semi-hollow model, with a single AP-6 pickup, and single volume and tone controls. The maple Hofner neck had Kluson tuners with ivory buttons, and a rosewood fingerboard with double-dot inlays. This entry-level model sold for $110.00.

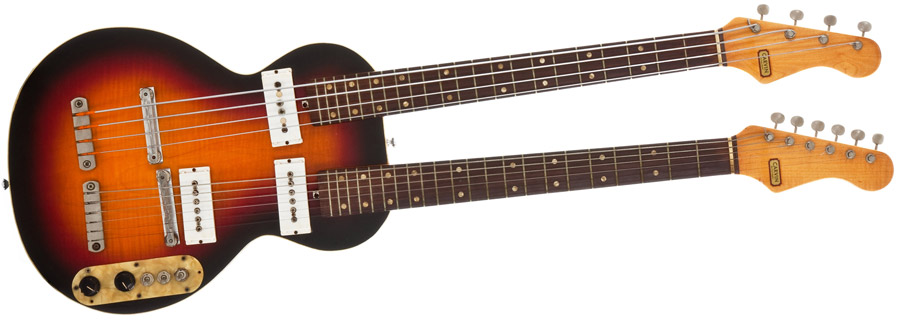

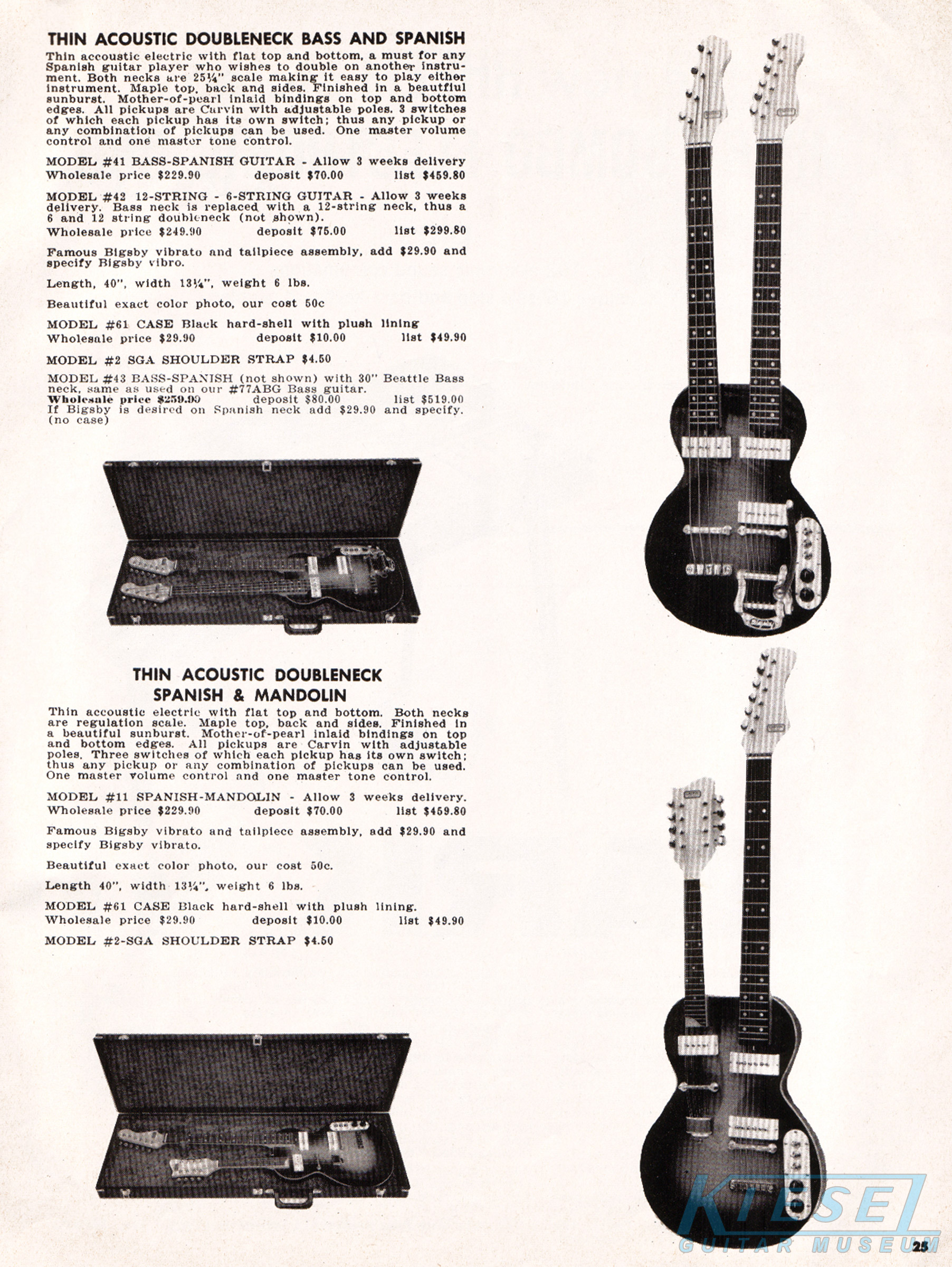

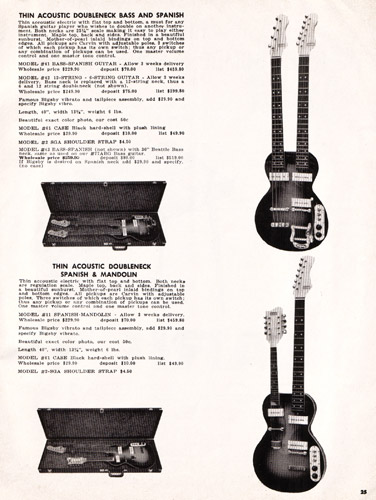

Carvin offered three doublenecks in 1969, the Model #11 guitar/mandolin, the Model #41 guitar/bass (below) and the Model #42 12/6 guitar (not shown
in the catalog). All these models had Hofner necks, Carvin AP pickups and maple bodies. All these models were finished in sunburst. The model #41 guitar/bass
sold for $229.90, the model #42 6/12 string sold for $249.90, and the model #11 guitar/mandolin sold for $229.90. The Bigsby vibrato was available on the 6-string
neck for an additional $29.90.

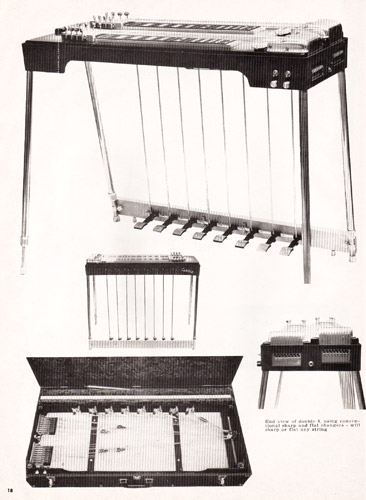

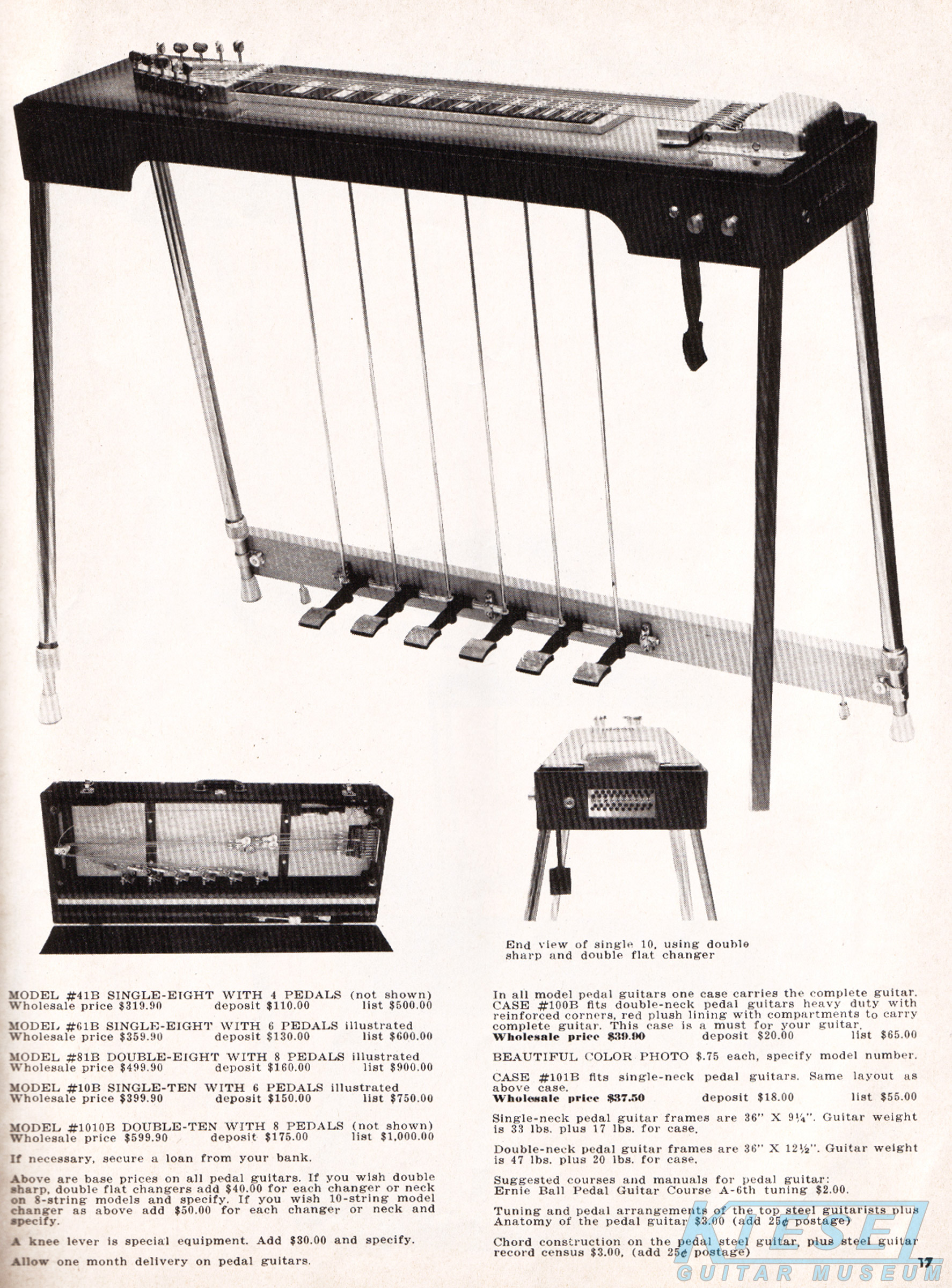

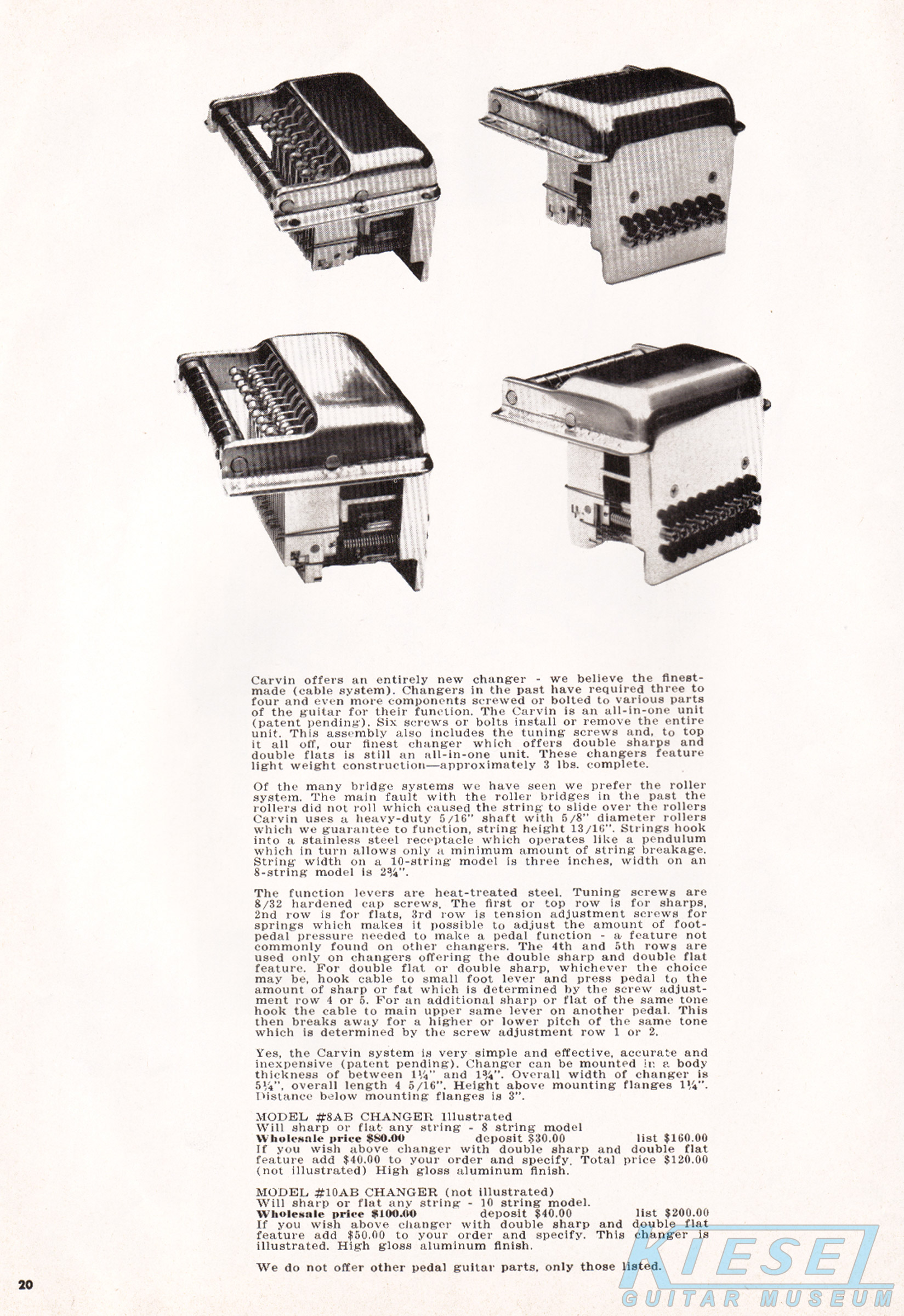

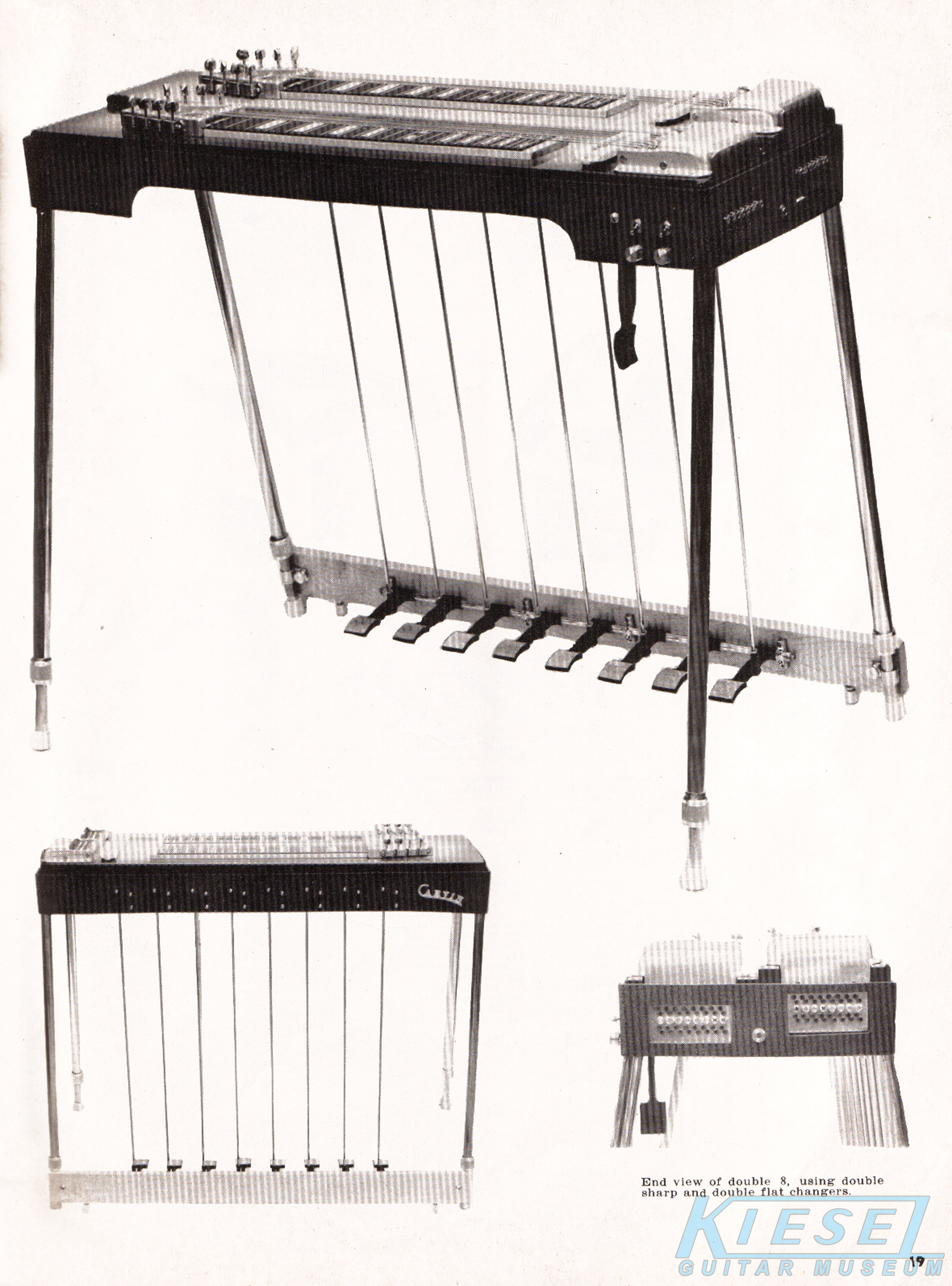

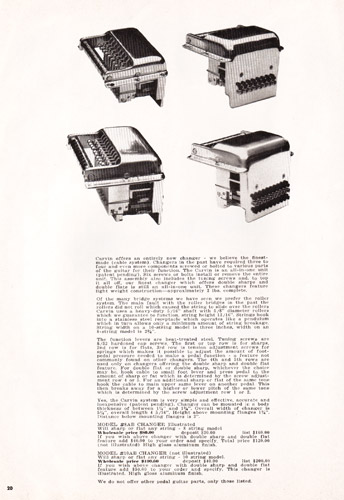

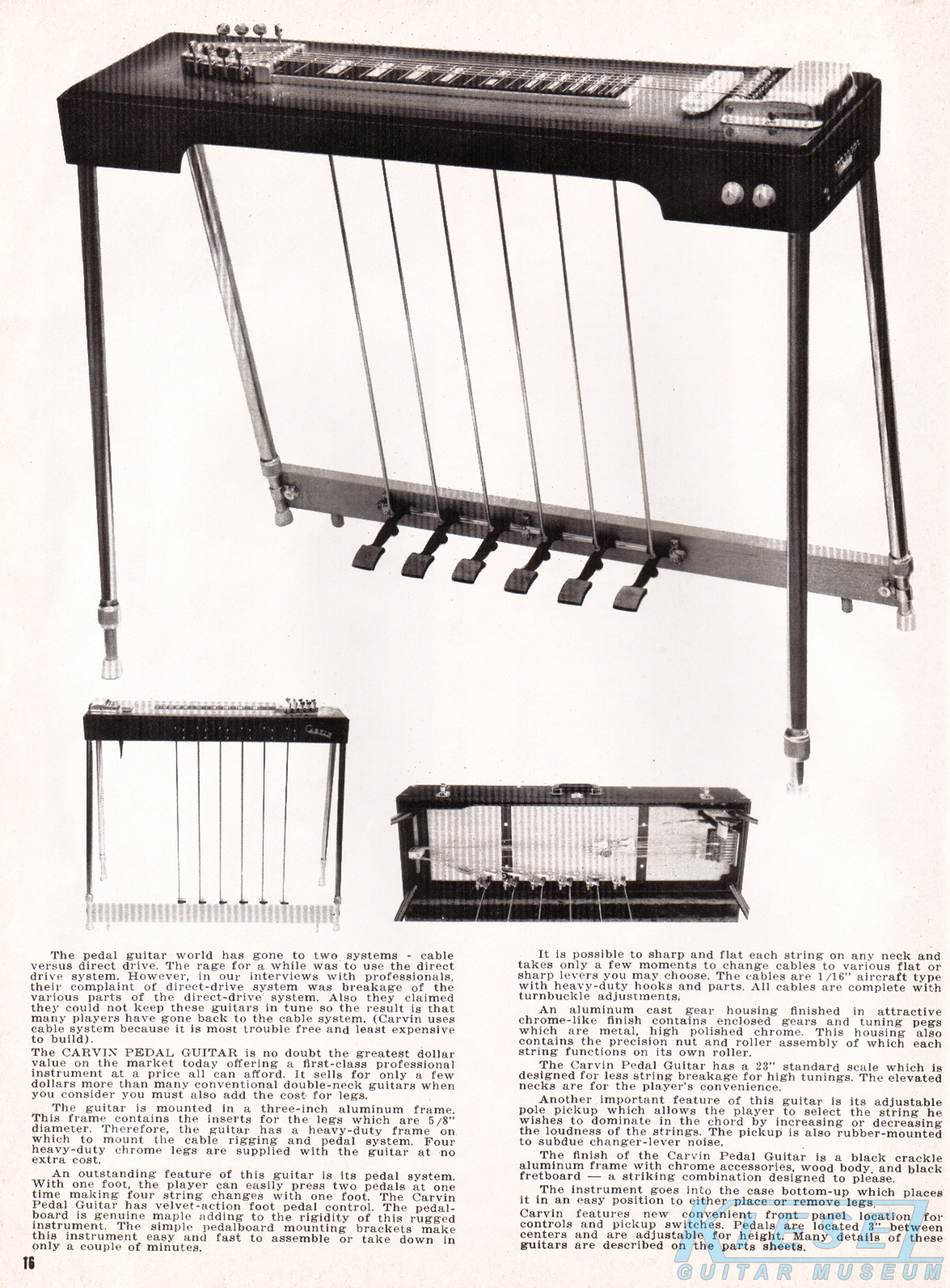

In addition to guitars and basses, Carvin also offered a wide selection of steel guitars, in both lap and pedal varieties. The Model #61-B 8-string steel guitar was which was an 8-string model with 6 pedals. It sold for $359.90. Below is the model #81-B, which was a doubleneck 8-string with 8 pedals. It sold for $499.90. Also available was the Model #41-B, which was an 8-string with 4 pedals that sold for $319.90; the Model #10B 10-string with 6 pedals that sold for $399.90; and the model #1010B, which was a doubleneck 10-string with 8 pedals that sold for $599.90. Carvin also offered a variety of accessories for their pedal steel guitars, including cases, pickups and double sharp and double flat changers.

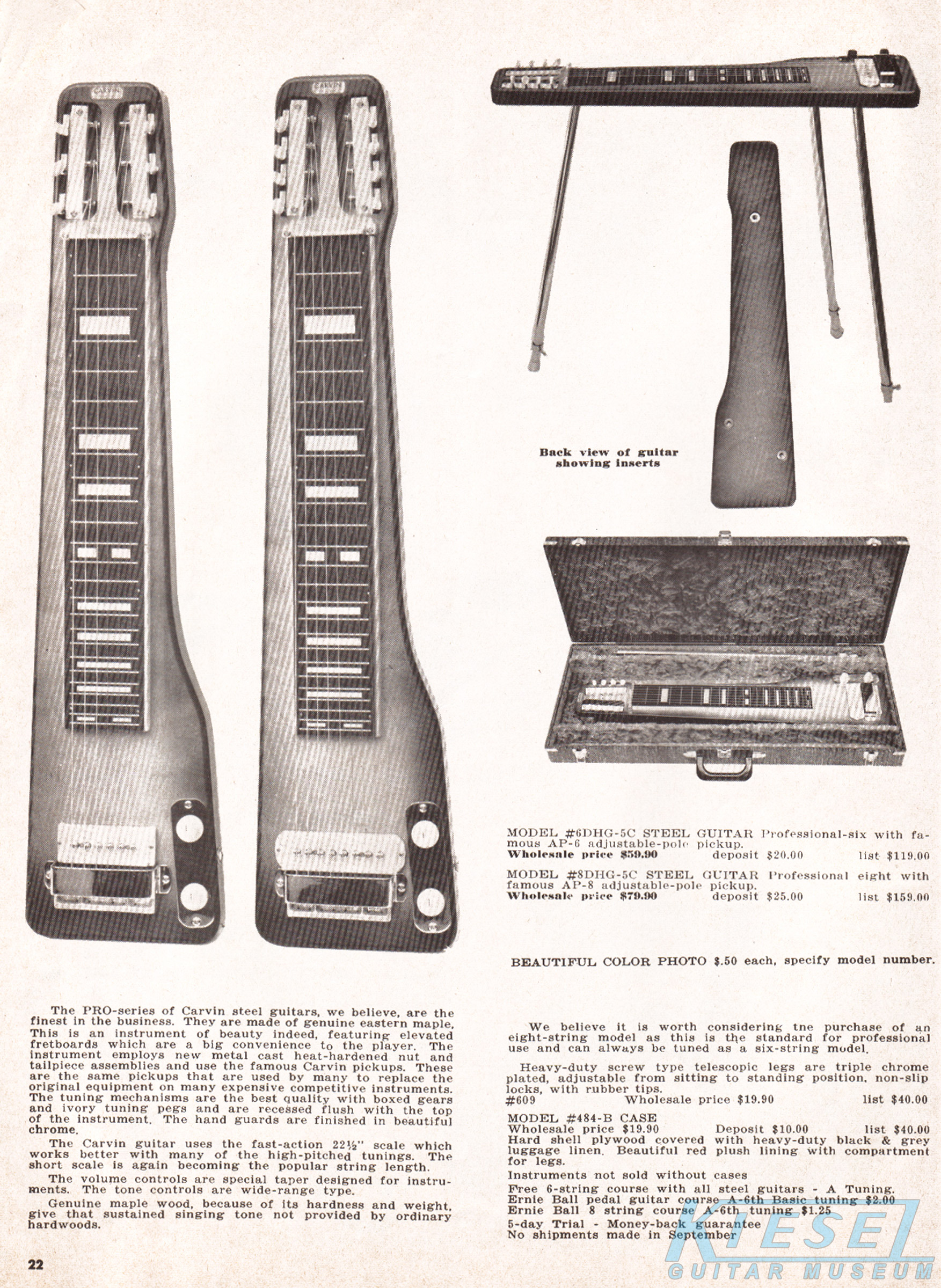

There were also lap steep guitars to choose from, in 6 and 8 string, and single and doubleneck varieties. Like other Carvin lap steels, the Model #6DHG-5C 6-string lap steel was constructed of maple, with a single AP-6 pickup, volume and tone controls, cast nut and tailpiece, chrome trim and ivory tuning pegs. Scale length was 22.5" on all lap steels. The #6DHG-5C sold for $59.90, and the model #8DHG-5C 8-string model (near left) sold for $79.90.

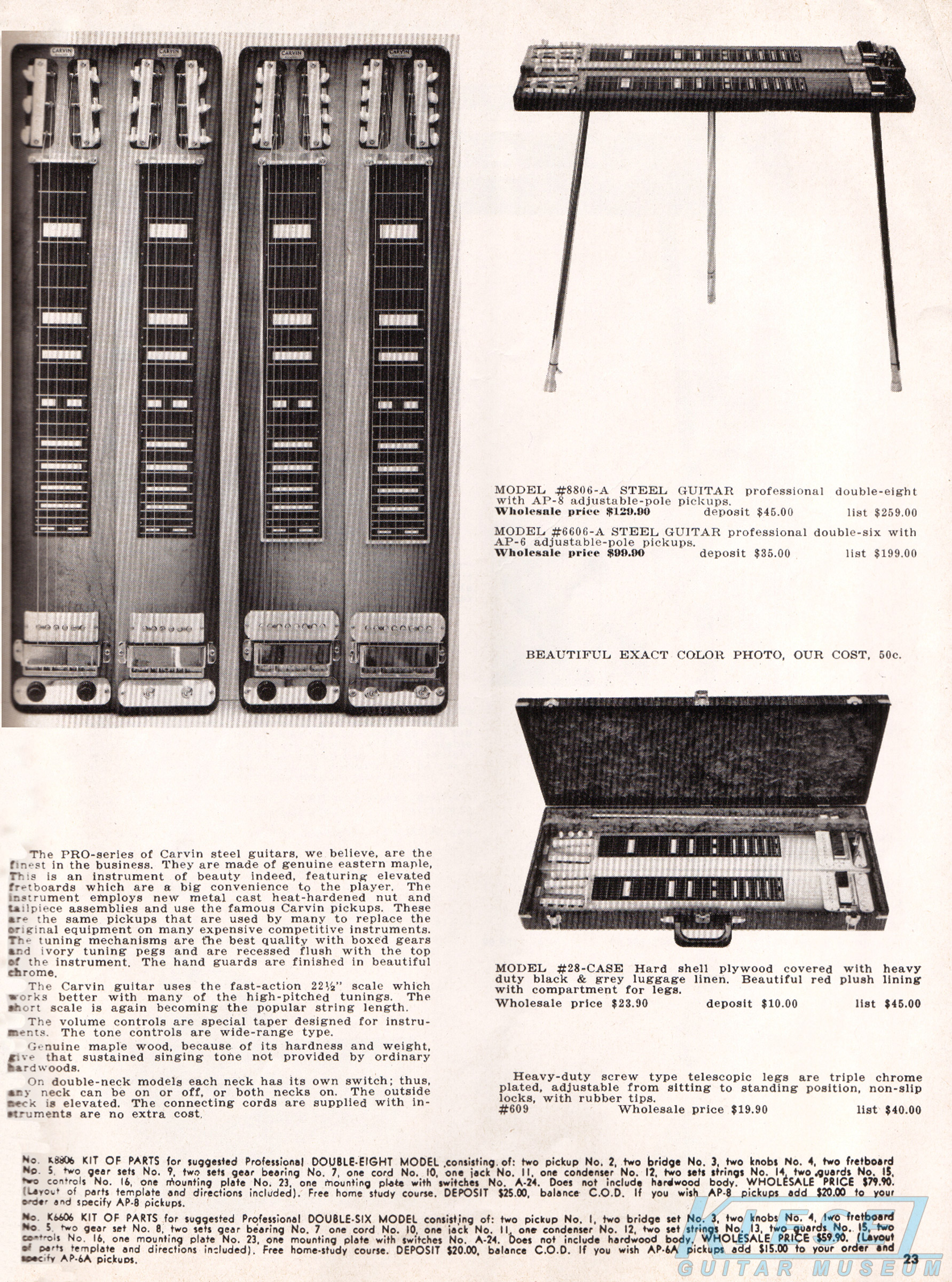

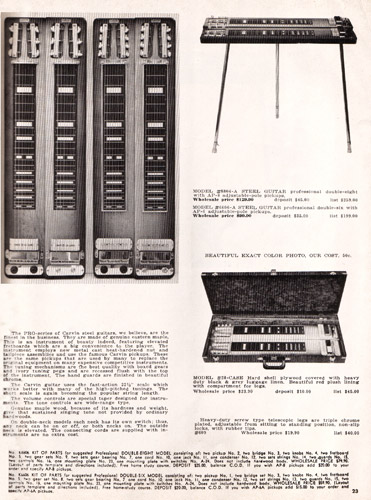

There were also doubleneck steels offered. These models had the same quality construction features as their single-neck counterparts, in a double-6 or double-8 configuration. The Model #6606-A sold for $99.90, and the Model #8806-A sold for $129.90.

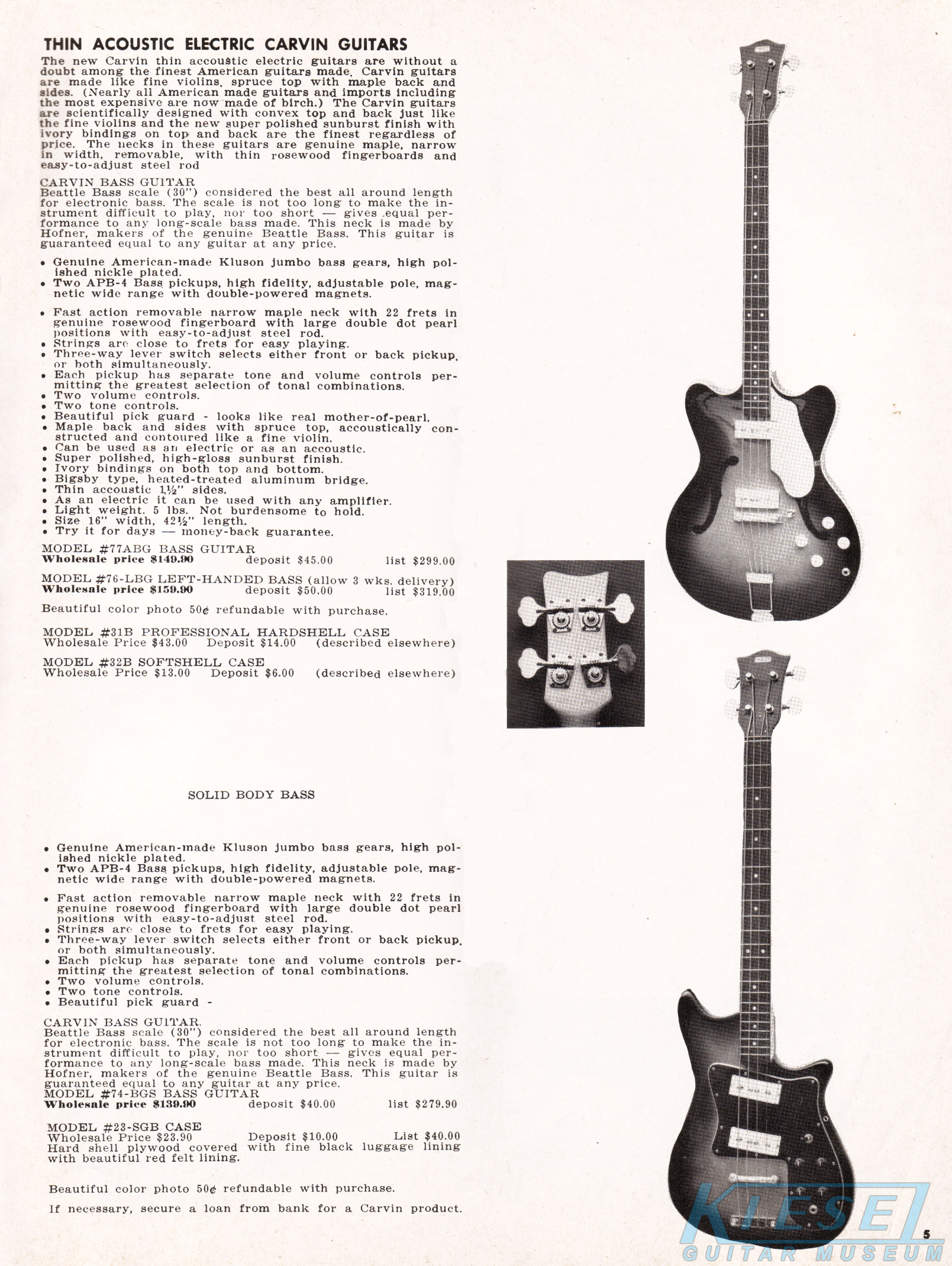

The Model #77-ABG had been offered in 1968, but wasn't pictured in the catalog until '69. This was an acoustic/electric bass with a 30" scale, Kluson tuners, and spruce top with maple back and sides. Electronics consisted of the Carvin APB-4 pickups, with dual volume and tone controls and 3-way selector switch. The Model #77-ABG sold for $149.90, and the left handed model (#76-LBG) sold for $159.90.
The Model #74-BS had some cosmetic changes for '69 (most obvious is the black pickguard, versus the white one of '68), but it was basically the same instrument with a new name - the #74-BGS. Electronics configuration and control was the same as the #77-ABG, with a pair of APB-4 pickups with dual volume and tone controls. The #74-BGS sold for $139.90.

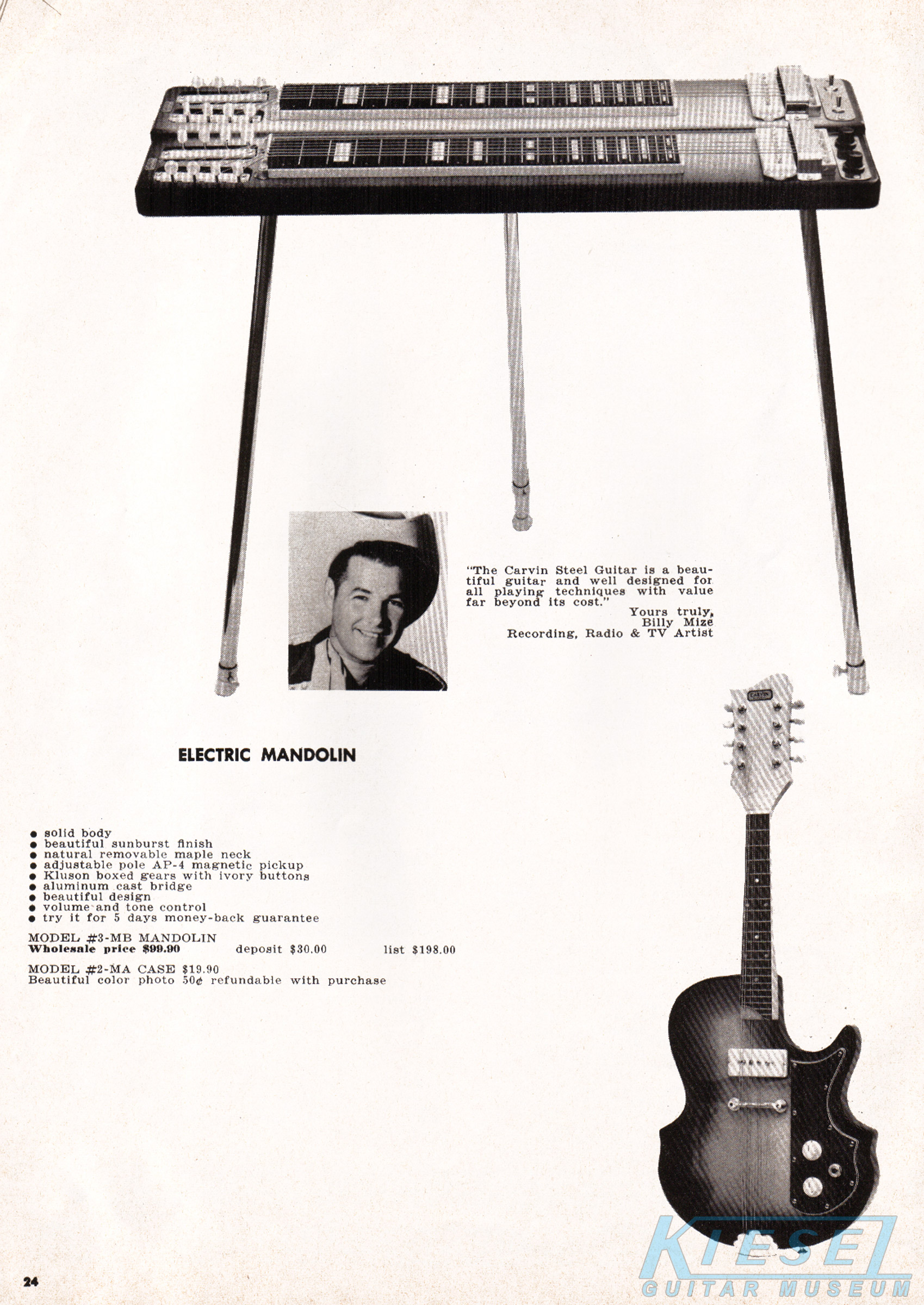

Carvin also offered an electric mandolin in 1969, the Model #3-MB. This instrument had a solid body with male bolt-on neck, single AP-4 pickup with volume and tone controls and Kluson tuners. It sold for $99.90, plus $19.90 for the #2-MA case.

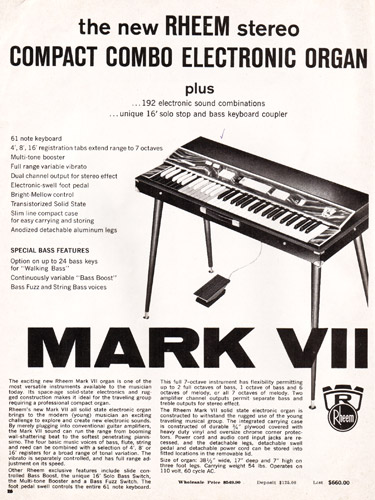

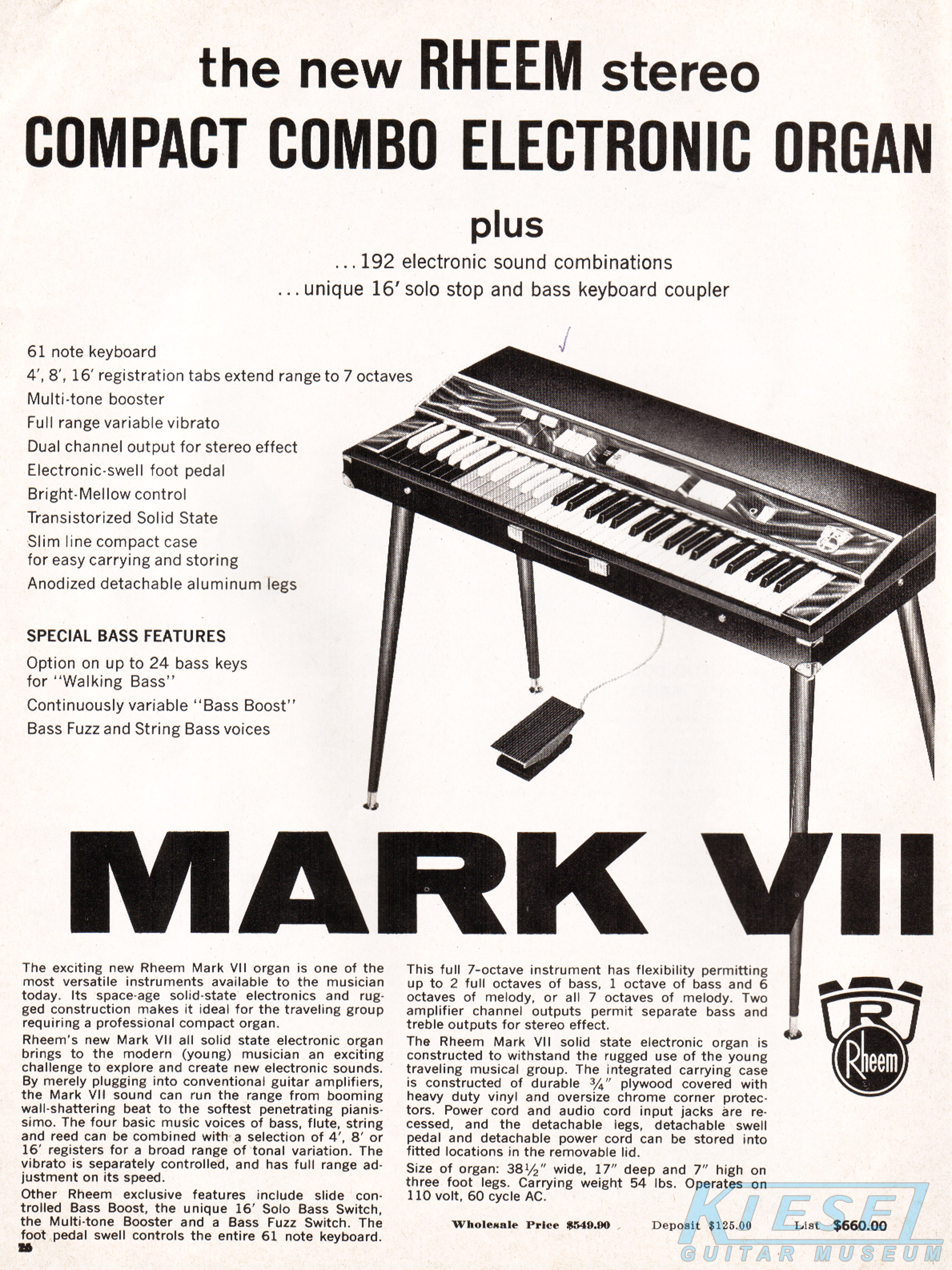

Interestingly, there were more instruments offered by Carvin than just guitars and basses in 1969. As they had done off and on throughout their history, Carvin was an authorized reseller of instruments made by other manufacturers. The catalog featured the Mark VII organ, which was made by Rheem (known now primarily for air conditioners!). Direct price on this item was $549.90.

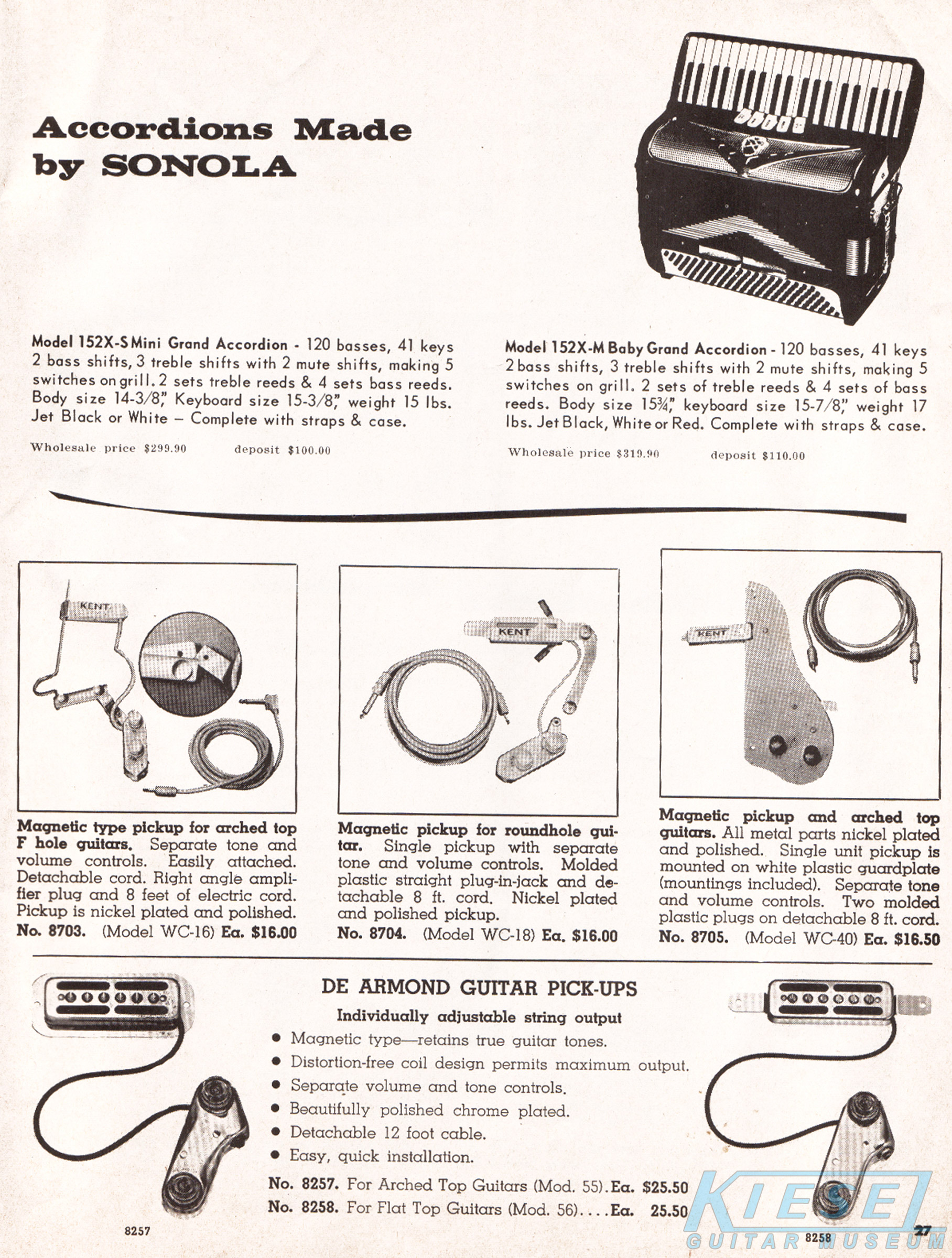

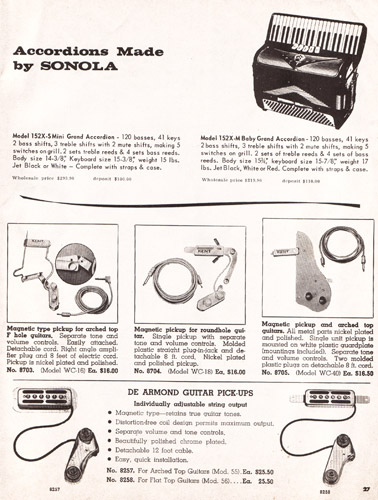

Accordions returned to the Carvin catalog in 1969, but for the last time. They offered two models, the Sonola 152X-S Mini Grand, which sold for $299.90, and the 152X-M Baby Grand which was $319.90.
