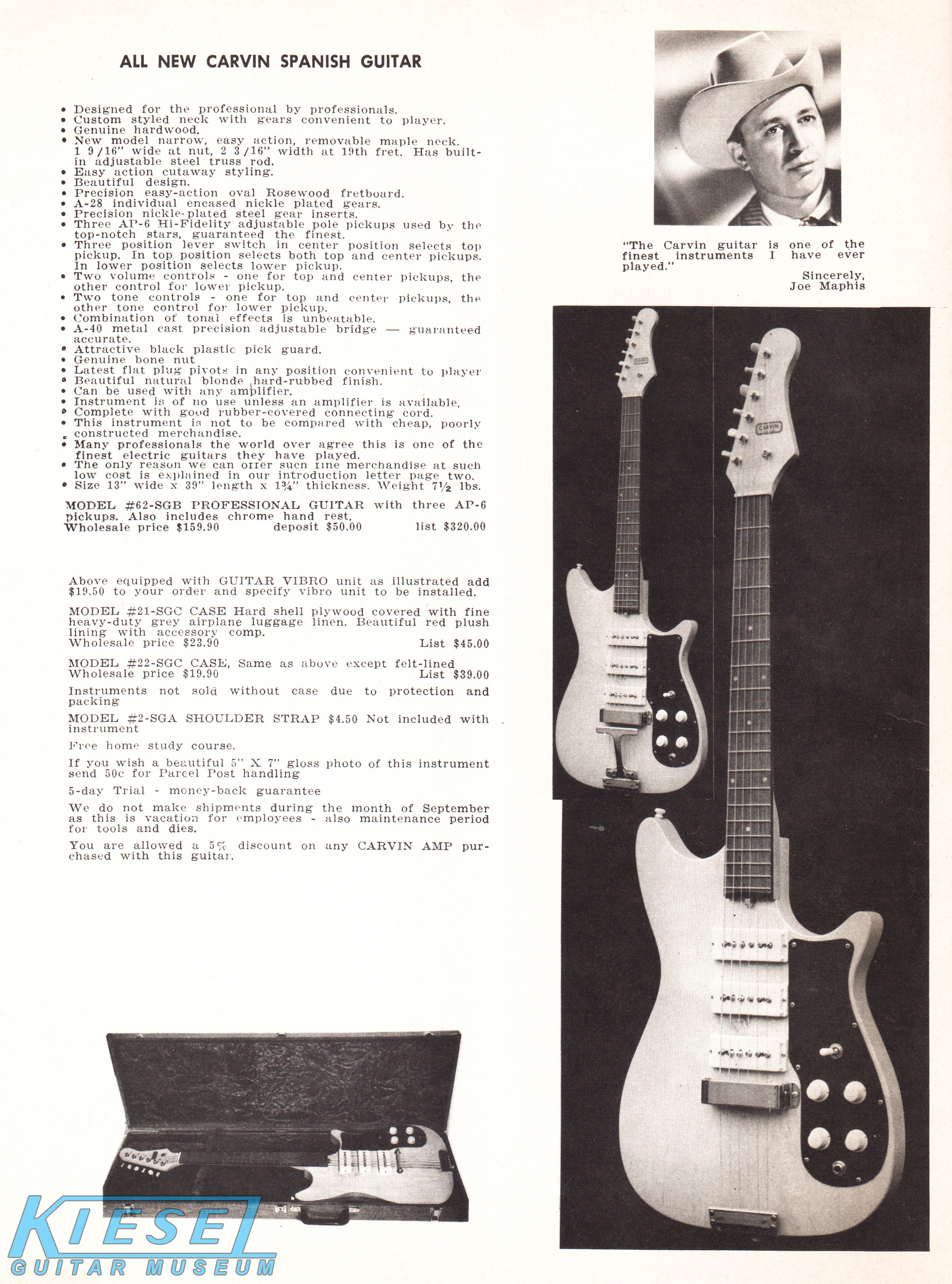

The model #62-SGB was the top-of-the-line model for 1962. Taking a cue from the hugely popular Fender Strat, the #62-SGB had three AP-6 adjustable pickups, which was unusual for the time. The body and neck were made from "genuine hardwood", which was presumably maple. The 25 1/8" scale fingerboard was rosewood, and the neck had an adjustable truss rod. The electronics configuration was a little unusual - the three-way selector switch selected either the neck pickup, neck and center pickup, or bridge pickup. There were two volume and two tone controls, with controlled the neck and center pickup together, and the bridge pickup. The model #62-SGB sold for $159.90, and the Guitar Vibro unit was an additional $19.50 (more on this unit below). There were two cases available, both hardshell, one plush lined, the other felt lined, which sold for $23.90 and $19.90 respectively.

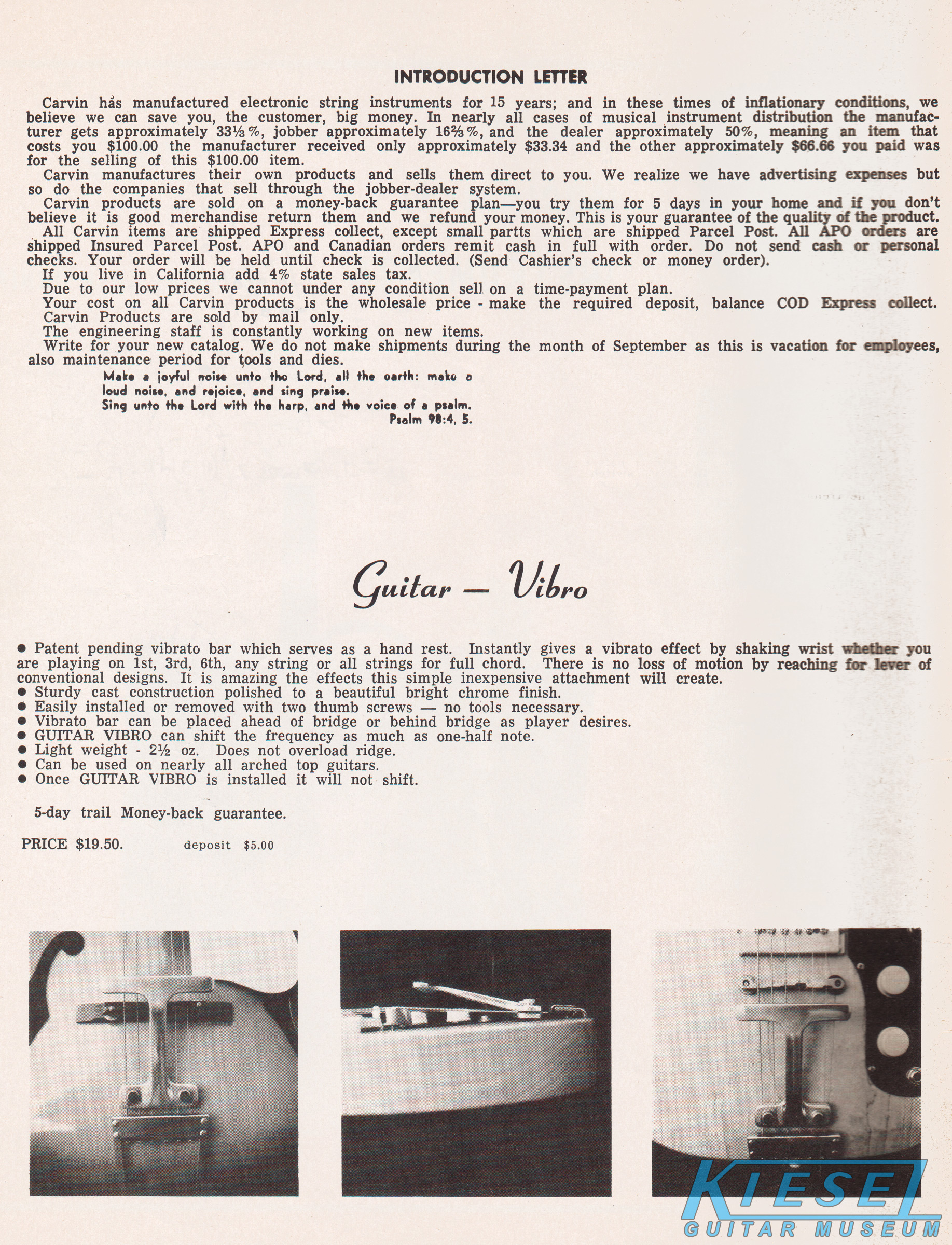

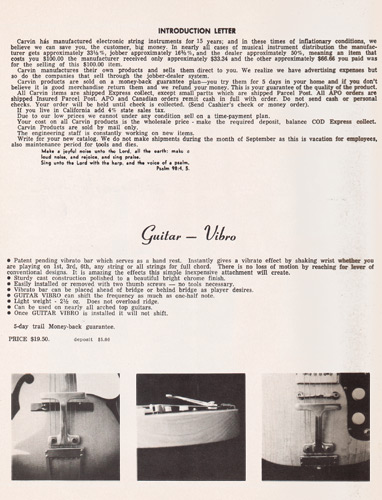

A new innovation created in the early 60's was the Guitar-Vibro, which was similar in principle to the Bigsby Vibrato, but without the familiar arm. The Guitar-Vibro clamped to the strings between the bridge and tailpiece, and doubled as a palm rest. By depressing it with the palm, the pitch could be dropped as much as a half-step. The Guitar-Vibro was available on most Carvin guitars in 1962, or could be purchased separately for $19.50.

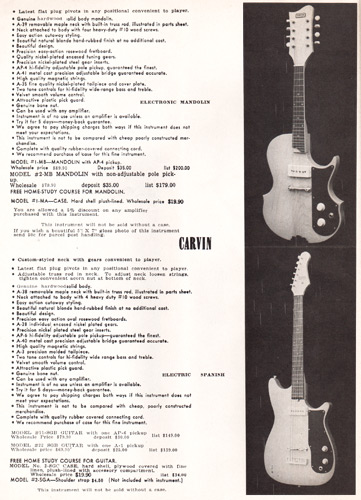

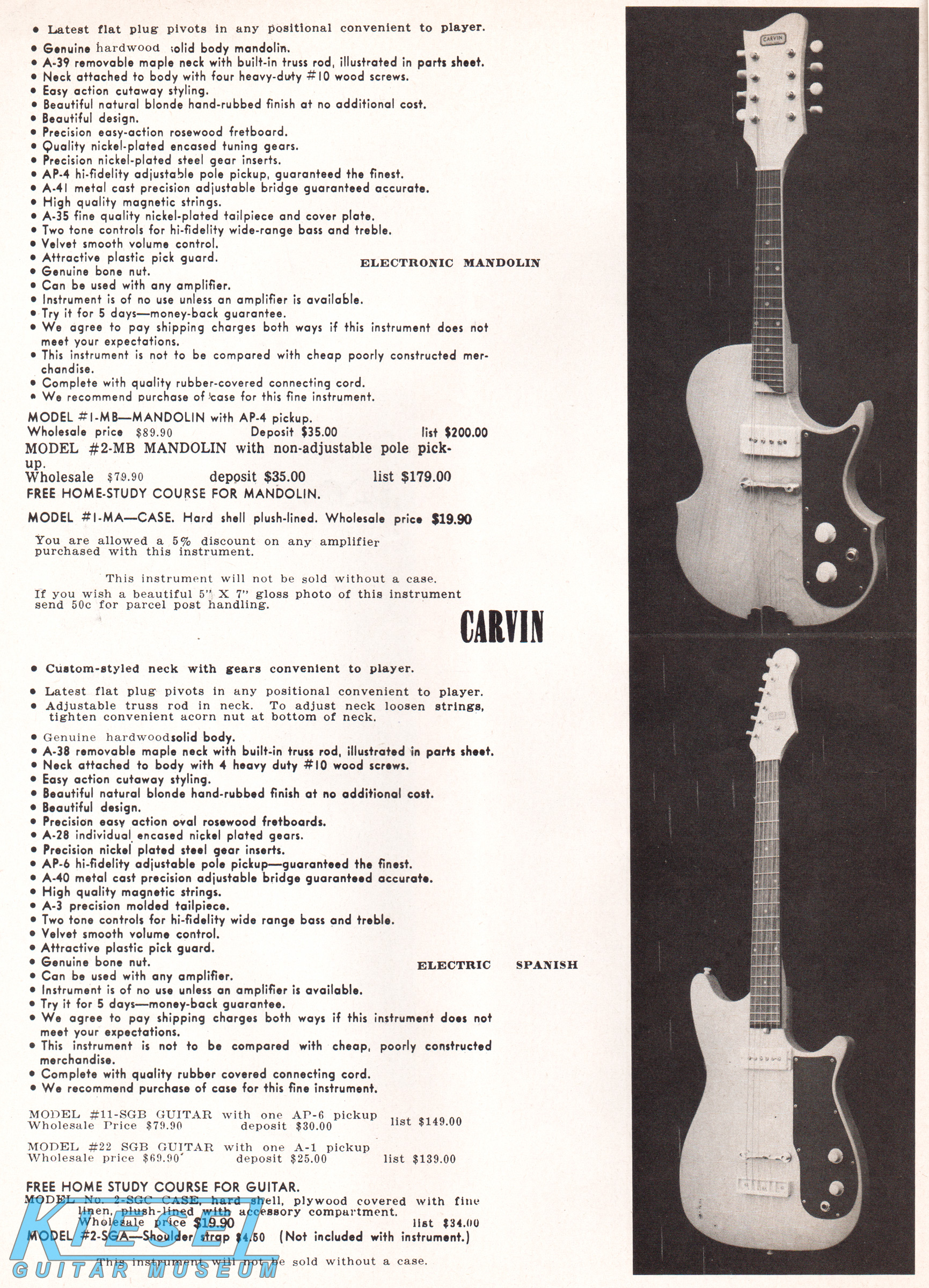

The model #11-SGB was Carvin's entry-level electric guitar for 1962. It was based on the #62-SGB, but with a single AP-6 adjustable pickup, and single volume and tone controls. All other aspects were the same. The model #11-SGB sold for $79.90, and was also available as the model #22-SGB, which had a single, non-adjustable A-1 pickup.

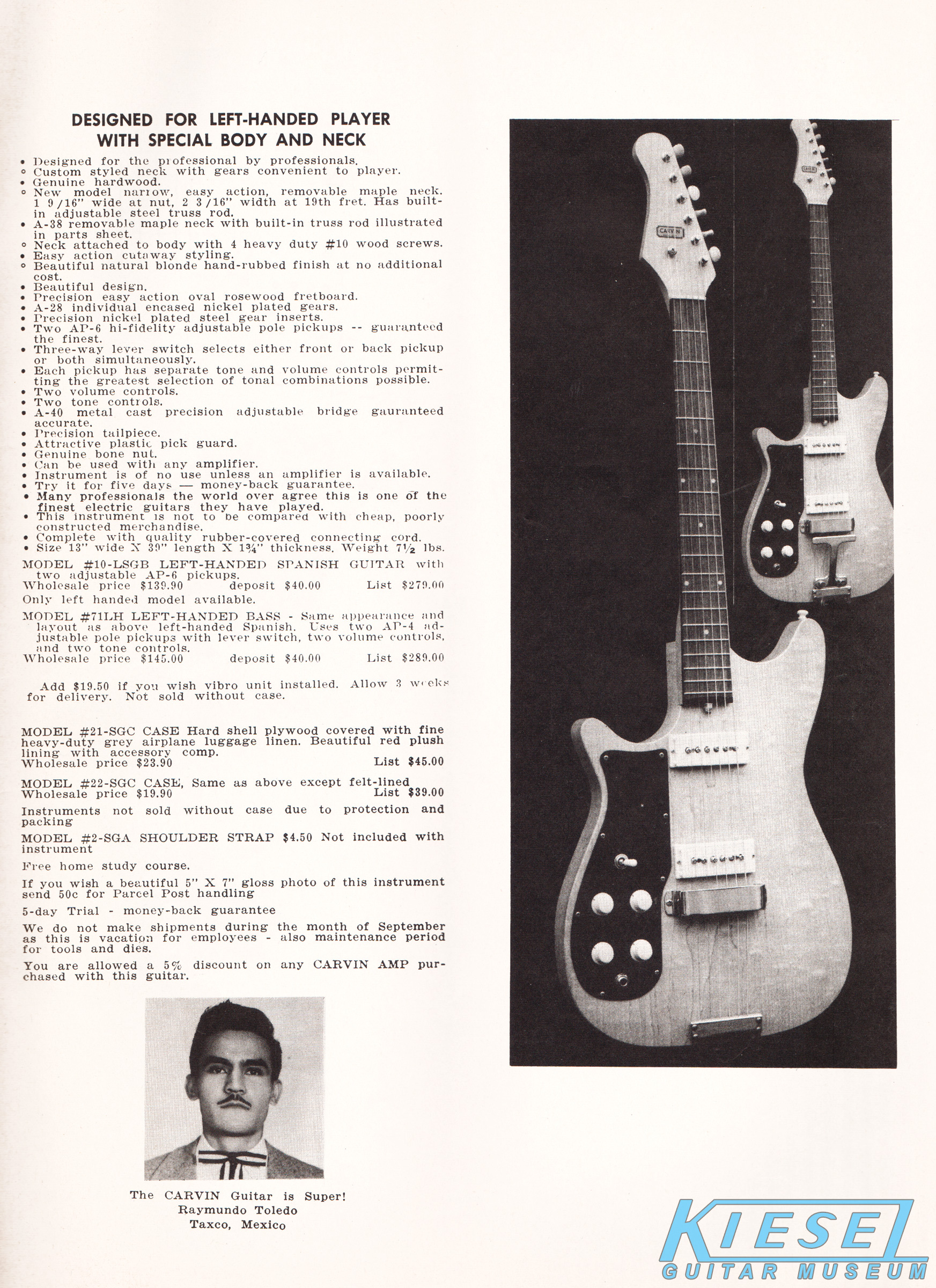

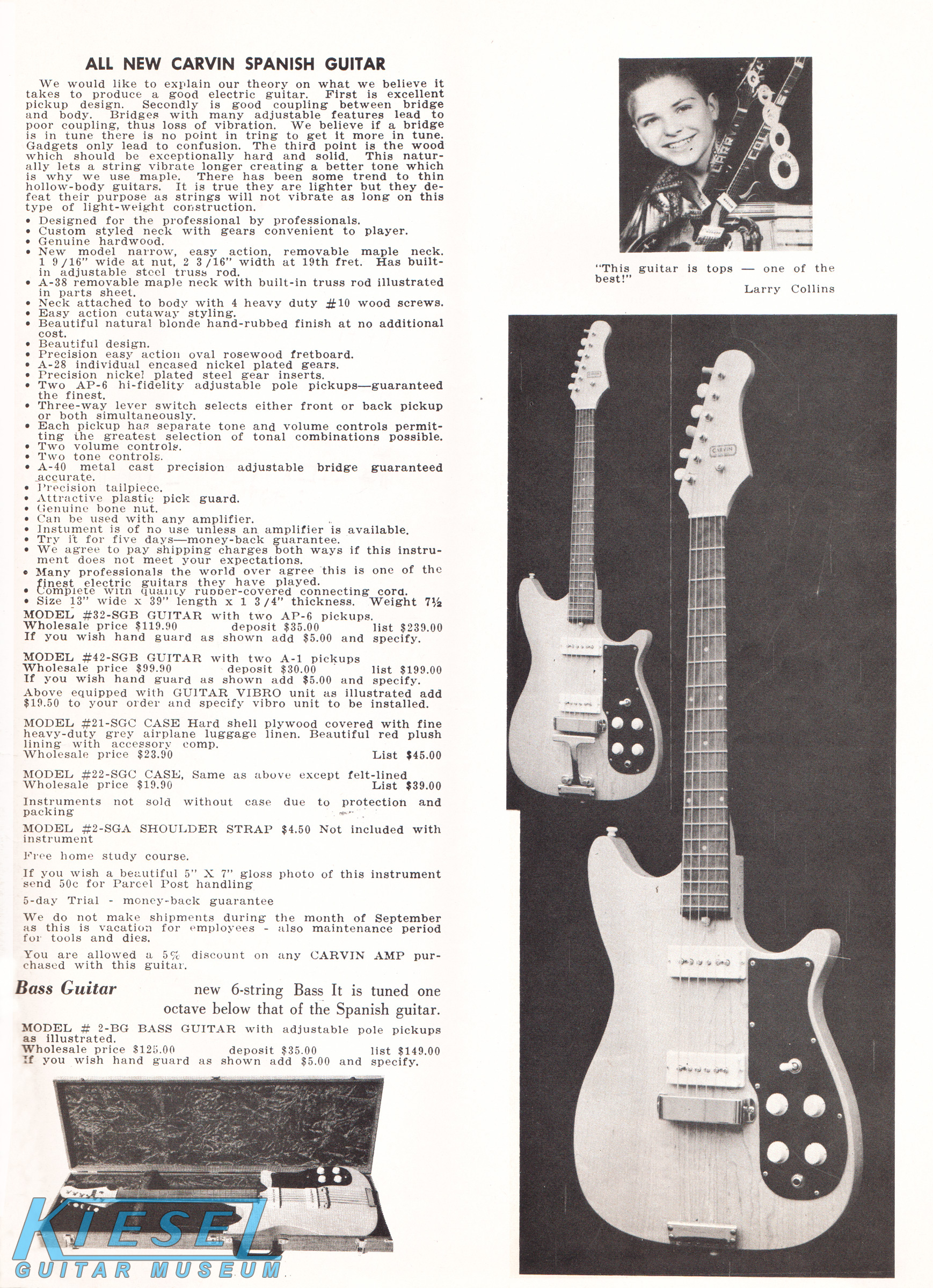

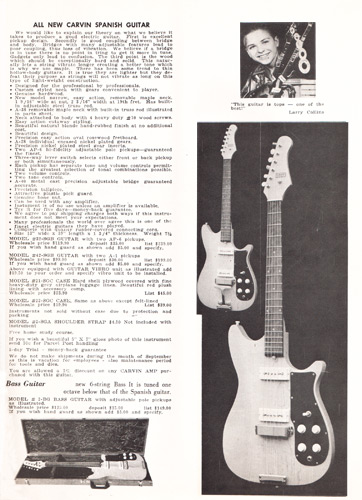

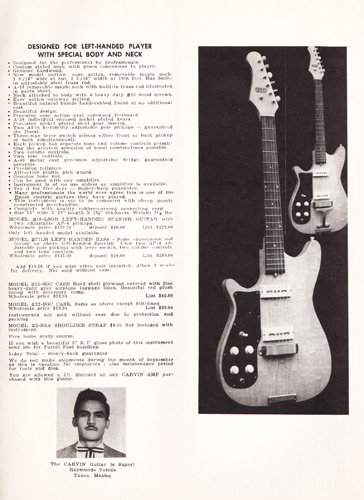

The model #32-SGB was built on the same body as the #62-SGB, except it had two AP-6 pickups versus 3. Otherwise, materials and construction was the same. The #32-SGB sold for $119.90. It was also available as the #42-SGB, which had non-adjustable A-1 pickups. In addition, it was offered as the #2-BG, which was sold as a bass guitar, but was actually a standard guitar tuned one octave lower. It sold for $125.00. The model #10-LSGB guitar was the same as the #32-SGB, in a left-handed version. It sold for $139.90.

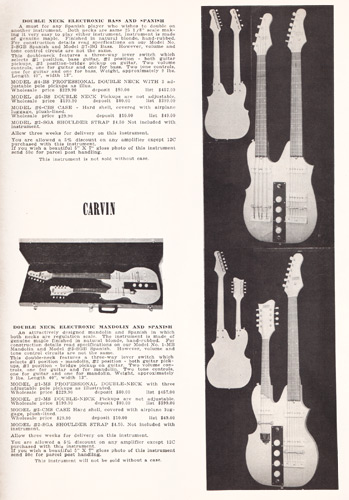

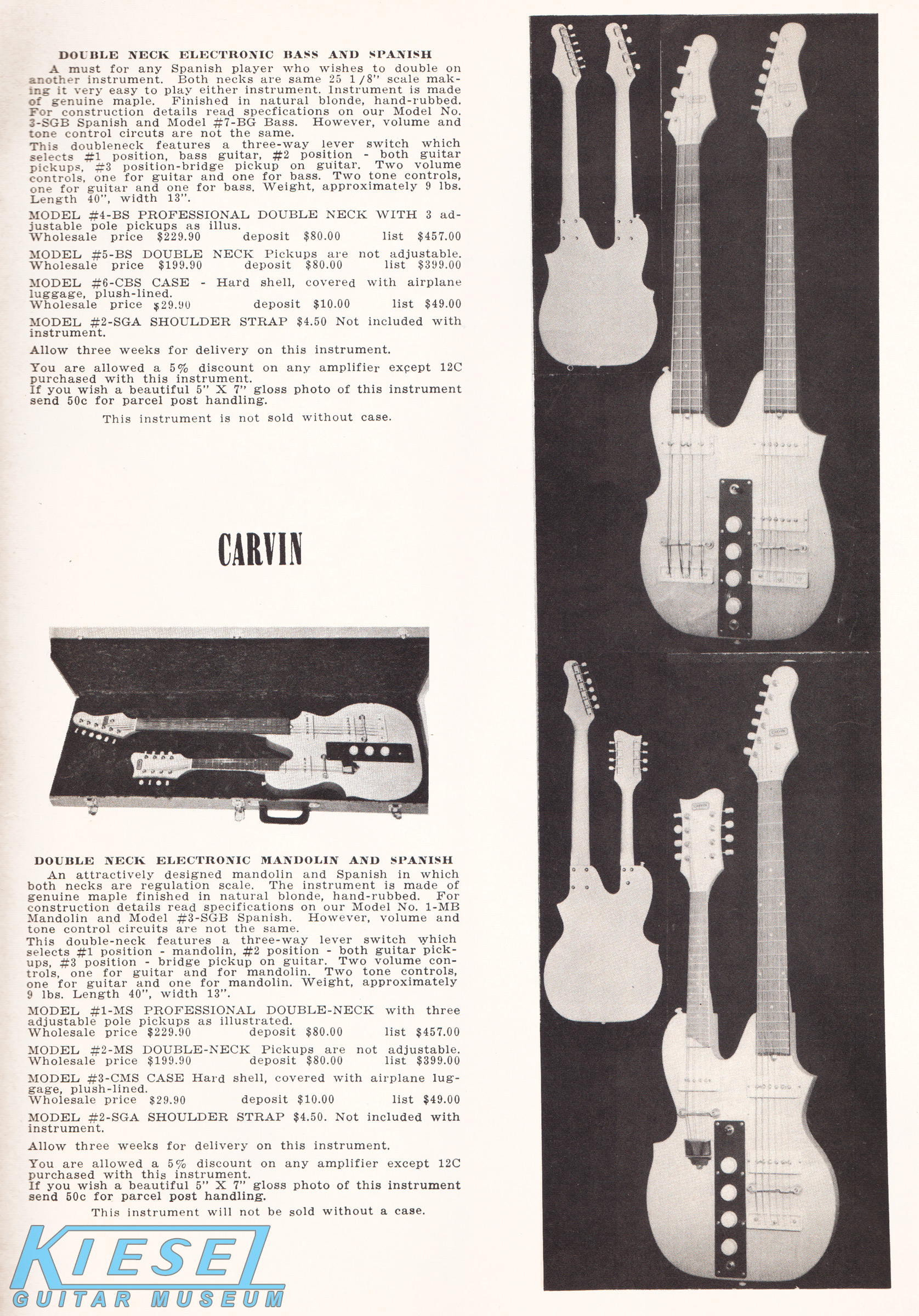

Carvin offered a pair of doublenecks in 1962, both of which were based on the same design, and had a 6-string on the bottom. The #4-BS was a doubleneck guitar/bass, with 3 pickups (two AP-6's and one AP-4), and individual volume and tone controls for each neck. The #1-MS had a six-string guitar and a mandolin with 3 pickups (two AP-6's and one AP-8) and individual volume and tone controls for each neck. Construction and materials were the same as their single-neck counterparts. The #4-BS guitar and bass sold for $229.90, and was also available as the #5-BS, with non-adjustable pickups, for $199.90. The #1-MS guitar and mandolin also sold for $229.90, and was available as the #2-MS, with non-adjustable pickups, for $199.90.
In addition to guitars, Carvin offered the #1-MB mandolin in 1962. This was constructed using the same techniques and materials as Carvin's other guitars, and had a single AP-8 pickup with single volume and tone controls. The #1-MB sold for $89.90, and was also available as the #2-MB, with a non-adjustable pickup, for $79.90.

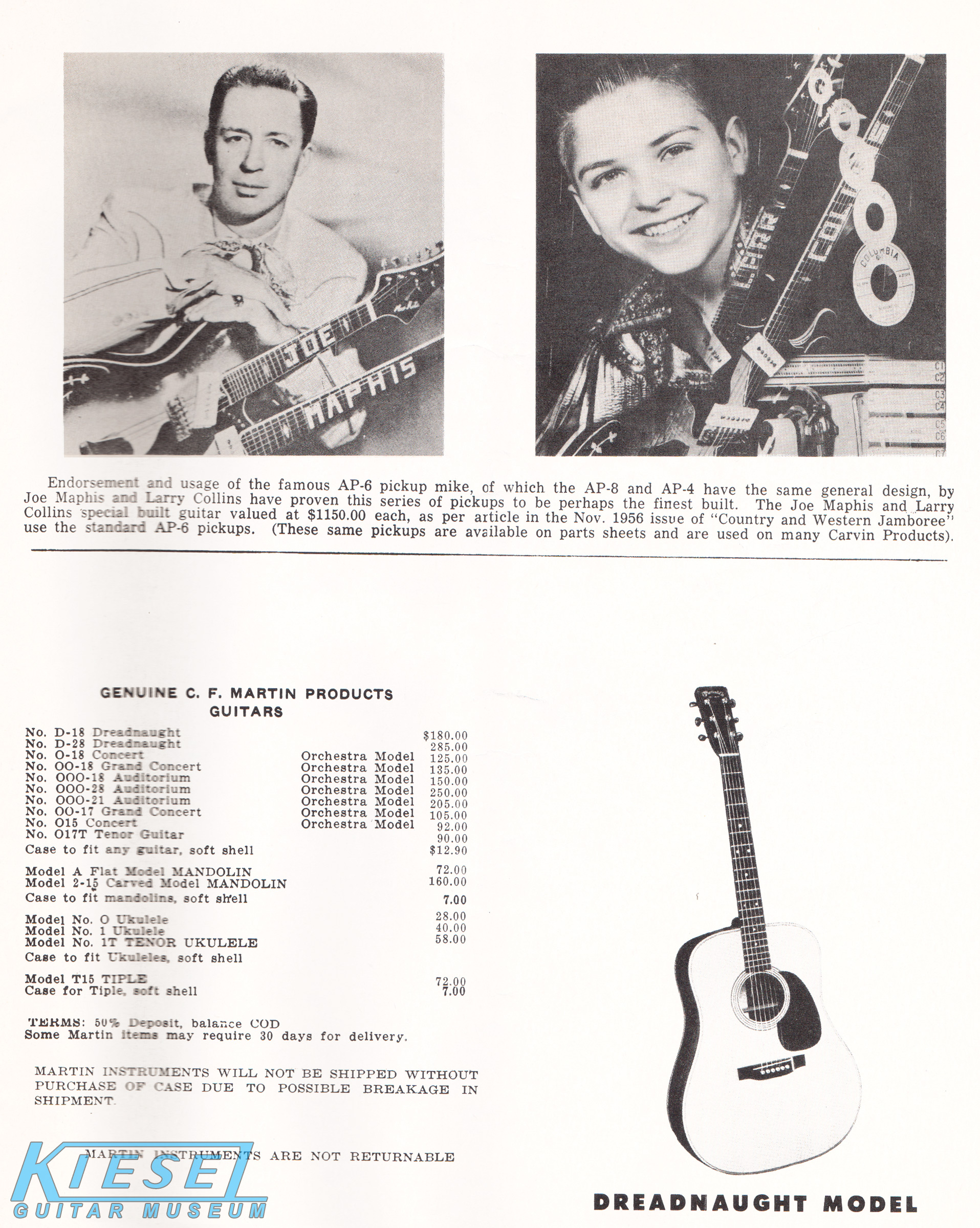

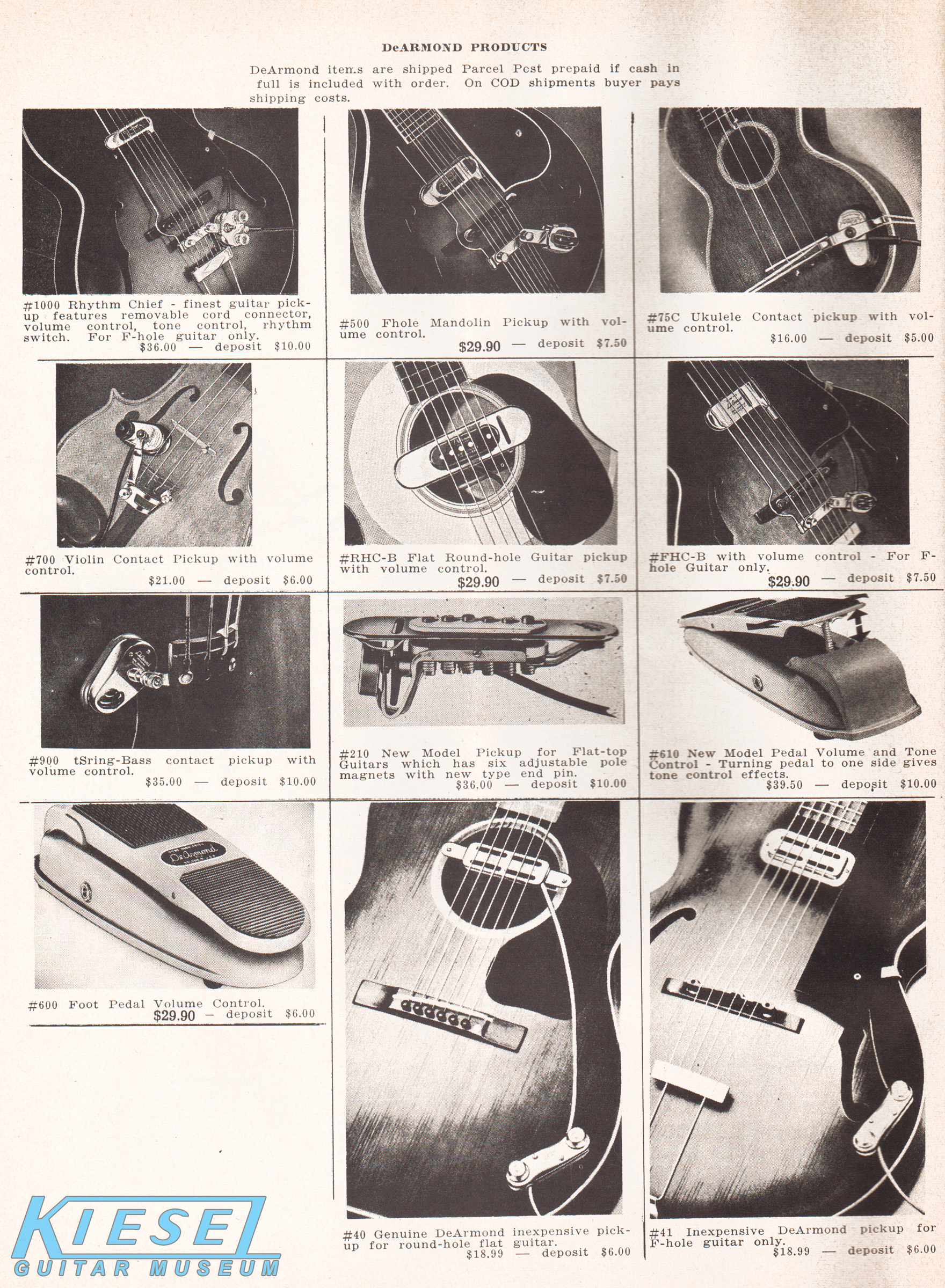

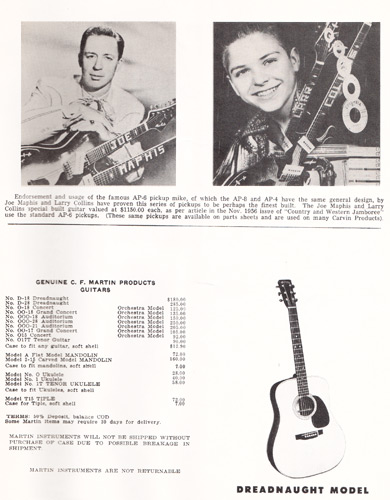

Throughout Carvin's early years, they offered gear by other manufacturers. In 1962, you could order a wide variety of Martin instruments from Carvin, including an assortment of guitars and other stringed instruments, such as mandolins and ukuleles. In addition to selling guitars by Martin, Carvin also sold other brands - notably, pickups and foot pedals by DeArmond. DeArmond made pickups for all sorts of acoustic instruments, including ukuleles, mandolins, violins and of course, guitars.

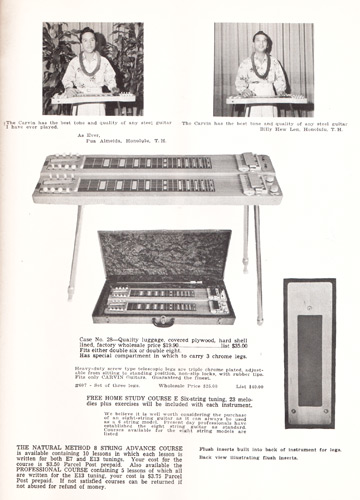

Carvin made its name early on by making pickups for steel guitars, and then by creating their own line of lap and pedal steel instruments. In 1962, an assortment of these instruments were offered.

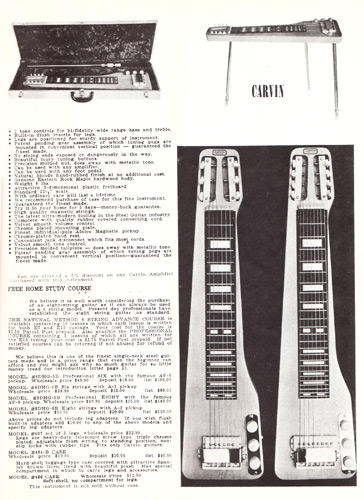

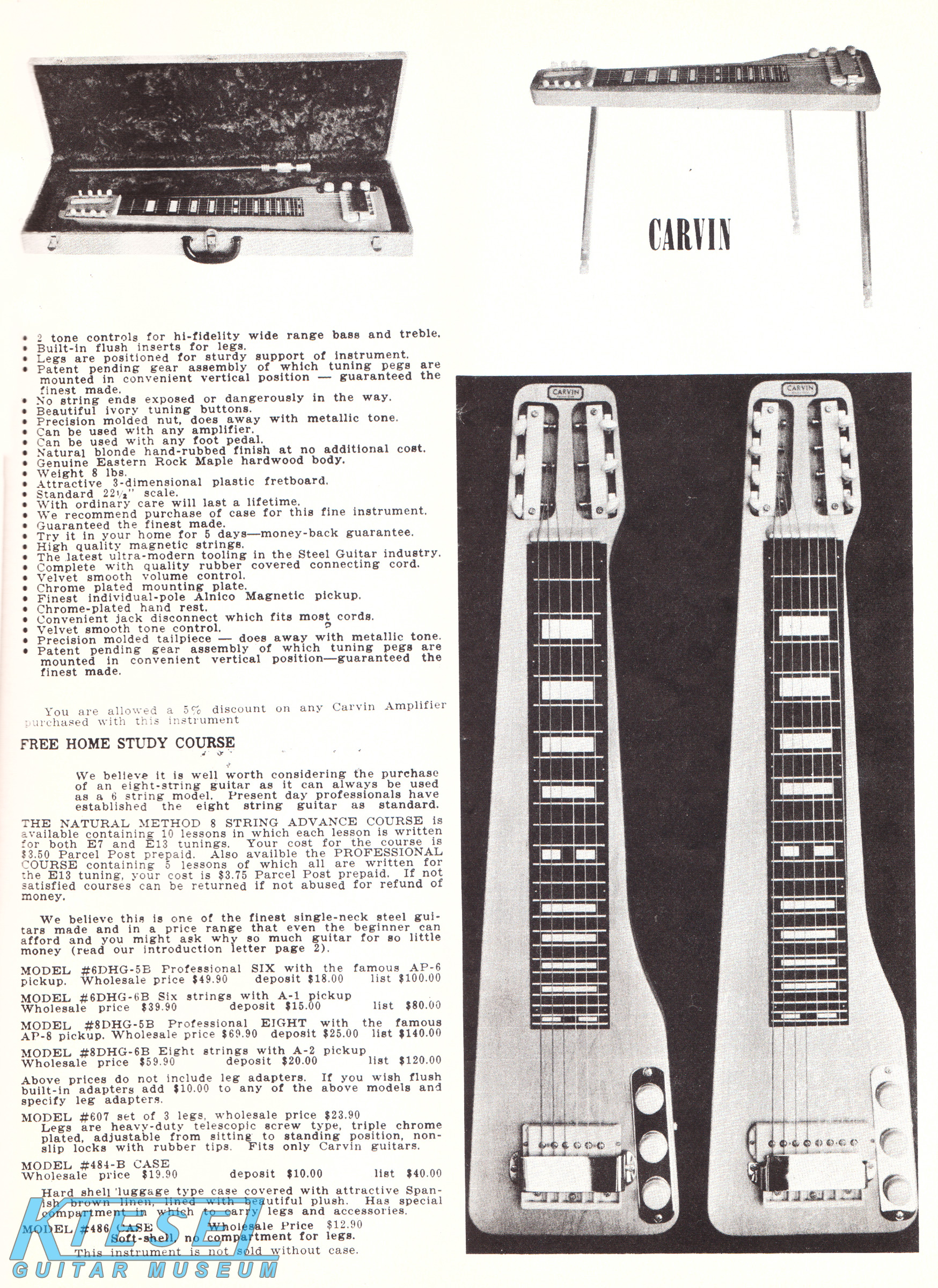

The #6DHG-5B and #8DHG-5B were Carvin's main single neck lap steels. Both were constructed of maple, with plastic fretboard, molded nut and bridge, ivory tuners and single AP-6 or AP-8 adjustable pickup with volume, treble and bass controls. The model #6DHG-5B 6-string sold for $49.90, and was also available as the #6DHG-6B, with non-adjustable pickup, for $39.90. The model #8DHG-5B 8-string sold for $69.90, and was available as the #8DHG-6B, with non adjustable pickup, for $59.90.

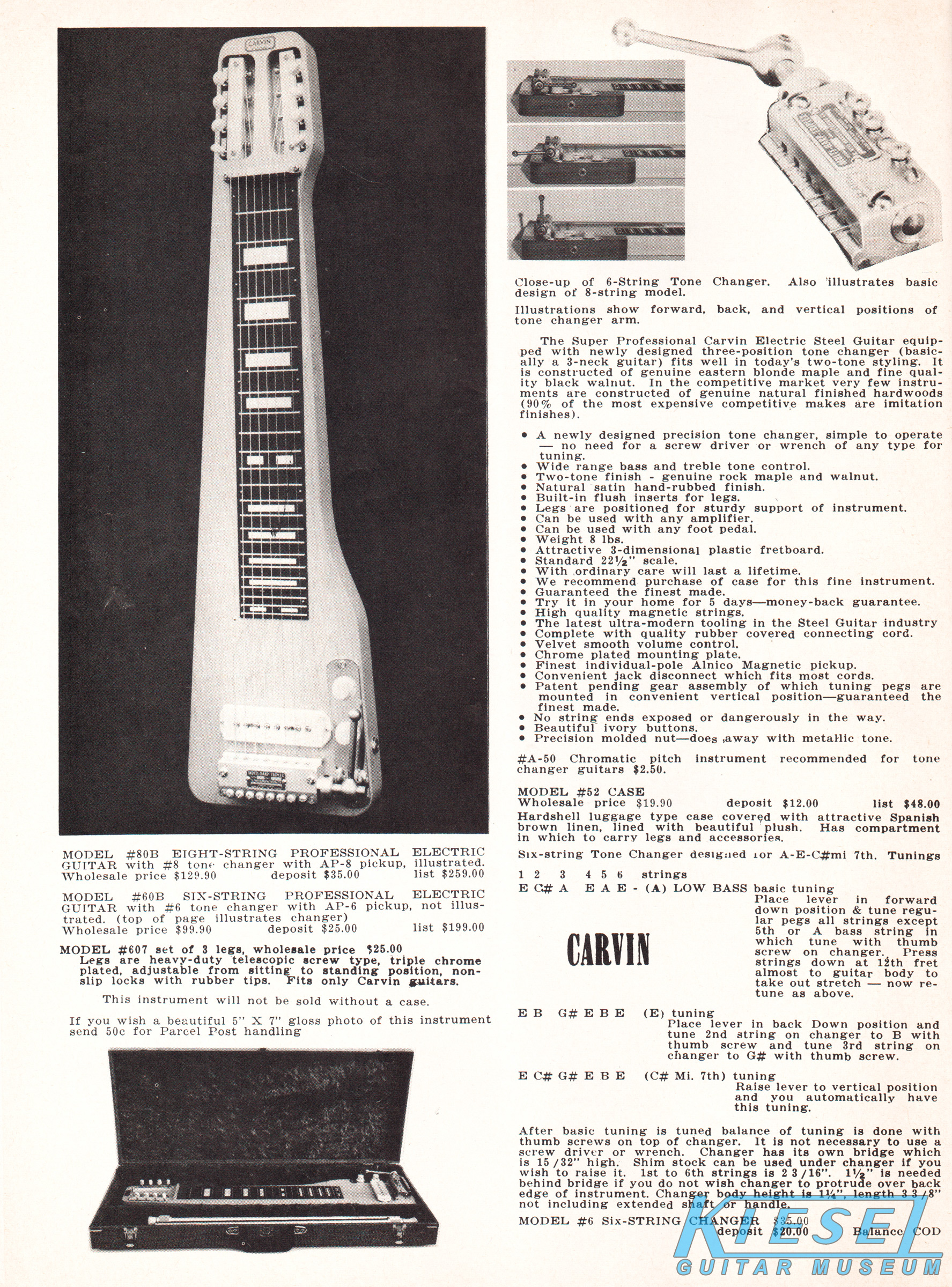

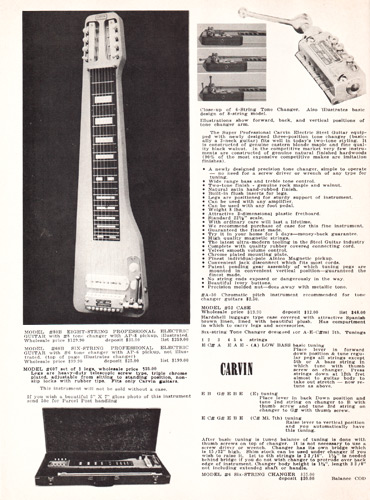

The model #80B eight string steel guitar was similar in design to the DHG series, but had the 3-position tone changer (note the lever on the bridge in the catalog photo) that allowed the guitar to be instantly retuned to A, E or Cm7. The model #80B sold for $129.90, and the 6-string #60B sold for $99.90.

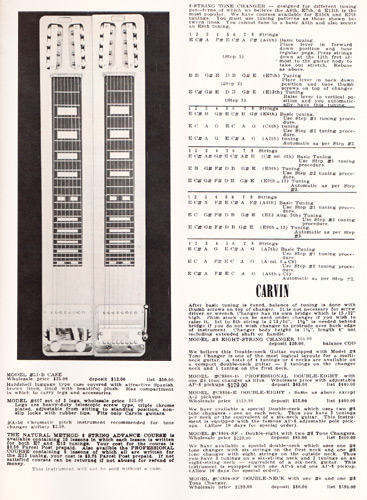

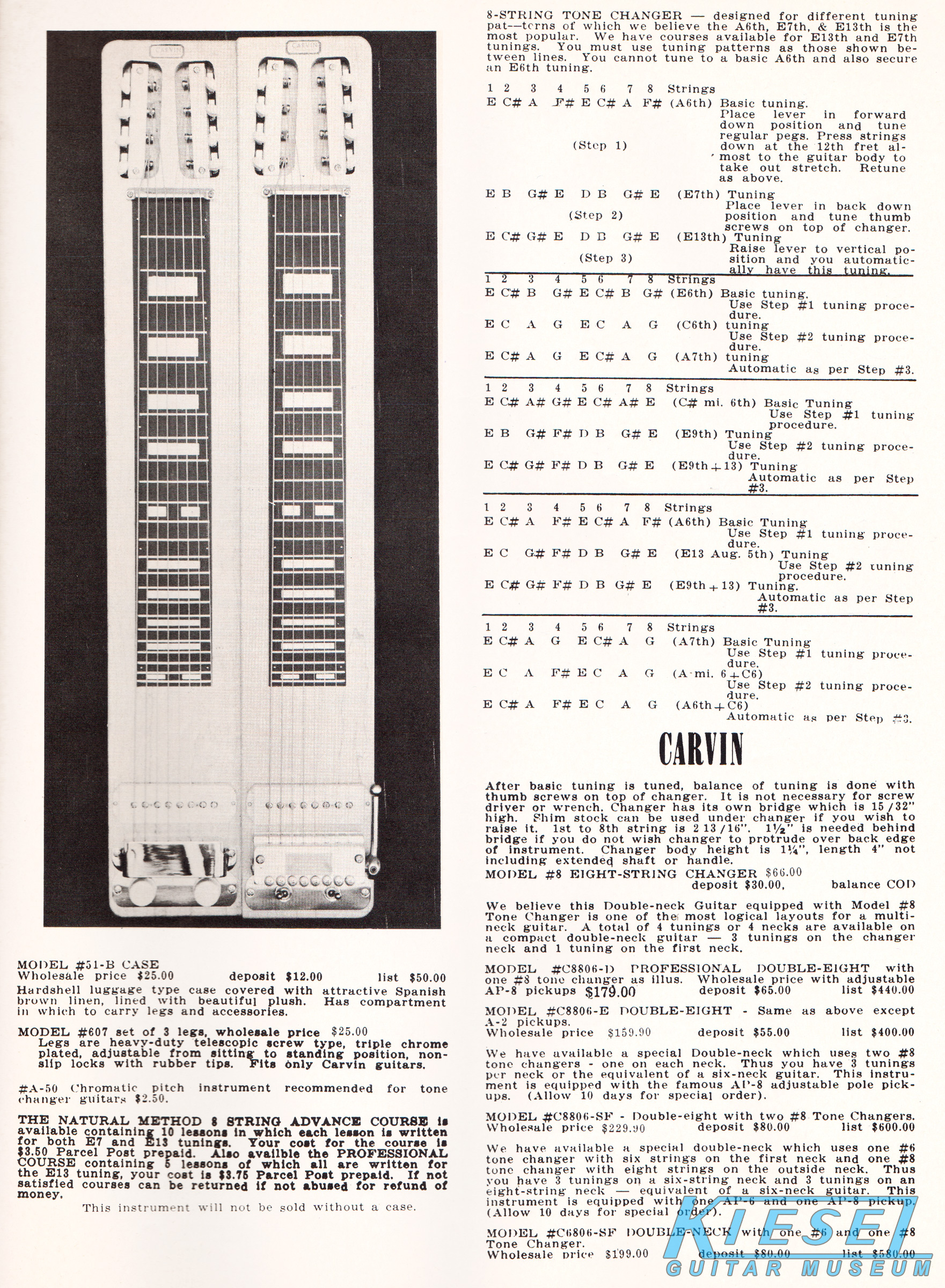

The model #C8806-D was a double-8 steel guitar, that had the 3-position changer on the outer neck. Construction & materials were the same as other Carvin steel guitars. The #C8806-D with adjustable AP series pickups sold for $179, and the #C8806-E, with non-adjustable pickups, sold for $159.90.

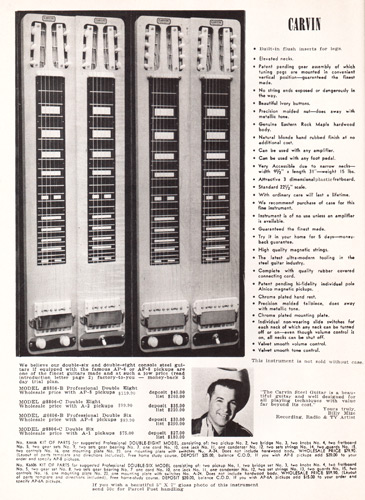

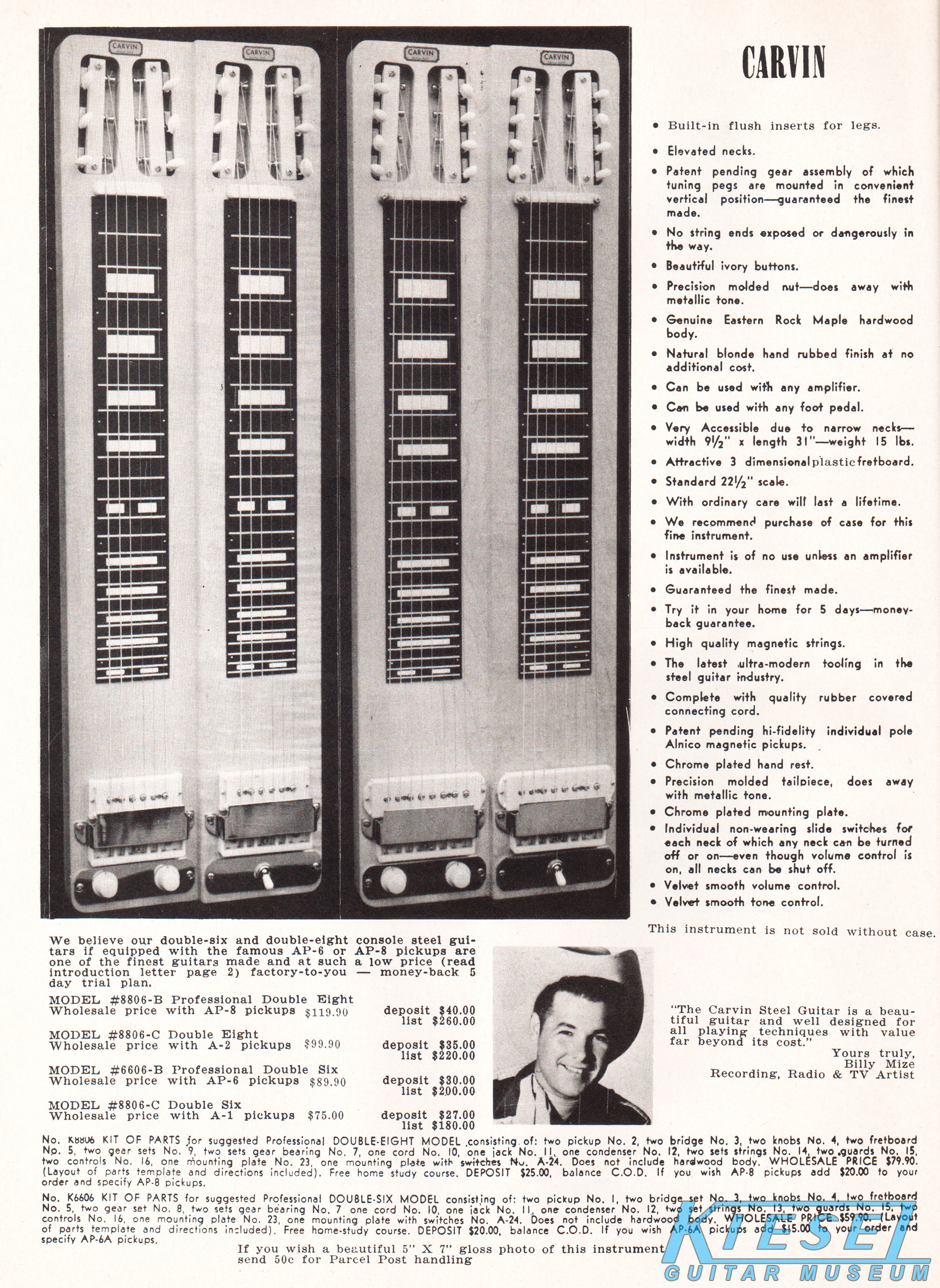

The model #6606-B and the model #8806-B were essentially the same as the #C8806-D, without the 3-position changer. The #6606-B double-six with adjustable AP-series pickups sold for $89.90, and the #8806-C with A-1 non-adjustable pickups sold for $75.00. The #8806-B double-eight was $119.90, and the A-2 equipped #8806-C sold for $99.90.

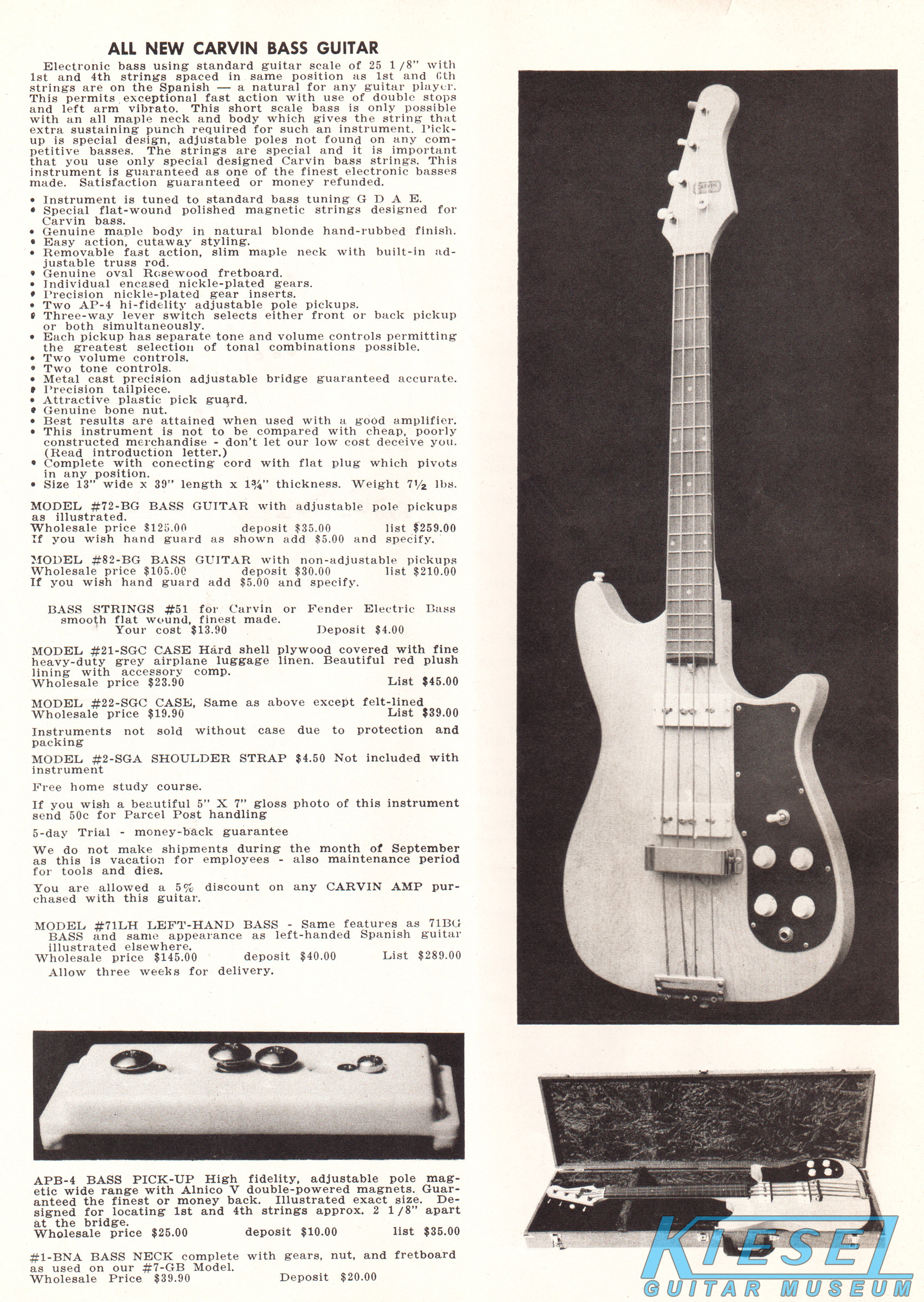

The model #72-BG bass was new for 1962, replacing the #71-BG from 1961. This bass was made from maple, with a clear hand-rubbed finish, with a 25 1/8" short scale maple neck with rosewood fingerboard. Electronics consisted of two AP-4 pickups with adjustable pole pieces, and volume and tone controls for each, and a 3-way pickup selector. Other features included a bone nut, cast metal bridge and tailpiece and plastic pickguard. The model #72-BG sold for $125.00, and the model #82-BG, which was the same as the #72-BG, except for non-adjustable pickups, sold for $105.00.
